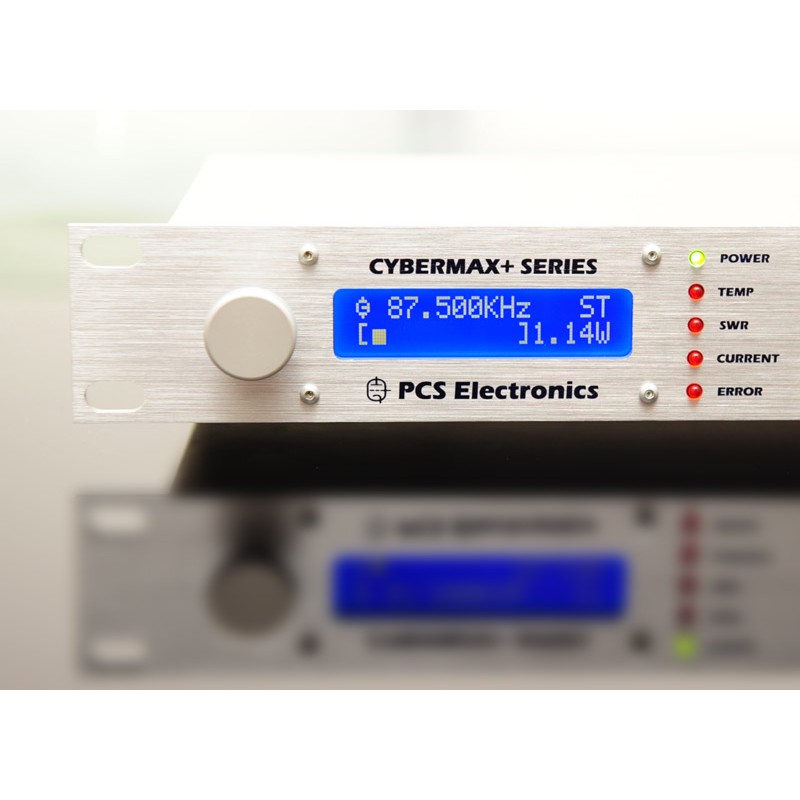

CybermaxLink 8000 20W TX/RX PSU Studio to Transmitter Audio Link

Technical specifications for transmitter:
- Synthesized from 45-500MHz (specify 10MHz segment at the time of ordering)
- PLL step: 100KHz
- Modulation: FM, ±75 KHz peak deviation
- Frequency stability: <±200 Hz
- Output power: 10, 20W, adjustable from 0 to max via LCD display
- Output impedance: 50 unbalanced, VSWR less than 2:1 for full output
- RF output connector: BNC female (rear panel)
- RF Spurious: >-75 dBc @ +- 1MHz min. away from carrier
- RF Harmonics: > -50-60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL error
- Audio input connectors: RCA (cinch) and XLR (DSP version)
- Audio level: 1Vpp
- Audio input impedance: 10Kohms
- Pre-emphasis: Flat, 50 or 75usec, adjustable
- Audio channel frequency response: 20 to 15 KHz ± 0.15 dB
- MPX input frequency response: 10 to 100 KHz ± 0.15 dB
- AUX input frequency response: 10 to 100 KHz ± 0.15 dB
- Harmonic distortion (THD): > 0,1% ( 0,05% typ. )
- Channel separation: 40 dB min., 20Hz to 15kHz
- AUX / MPX input level: -10 to +13 dBm @±75 KHz deviation
- AUX channel input impedance: 10K
- MPX and AUX input connector: BNC-female
- Power supply: 110-240V 50/60Hz
- Operating temperature range: -15 to 45C
- Dimensions : 483 x 88 x 150 mm , rack std. 19”2U
- Weight: 2Kg

Technical specifications for receiver:
- Available for frequency: 45MHz-850MHz (specify 10MHz segment at the time of ordering)
- Built-in speaker for easy monitoring
- Sensitivity: ~1uV 10dB SINAD (varies with frequency band, falls rapidly above 600-900MHz, can be corrected with preamplifier)
- Frequency response MPX: 20 Hz to 60 KHz ±0.1 dB
- Stereo separation: 20 Hz to 15 KHz >40 dB
- 19KHz notch attenation: > 60 dB
- S/N Ratio : >65 dB @-40 dBm , 75 KHz dev. and 1 KHz mod.
- THD : 20 Hz to 53 KHz <0.3%
- Selectivity: ±160 KHz at -3 dB IF BW, ±500 KHz at -62 dB IF BW
- Image rejection: >65 dB
- Stereo audio output impedance: 50 ohm balanced
- Stereo audio output connector: RCA/CINCH female
- MPX output impedance: 75R
- MPX output connector: BNC female and XLR balanced
- Headphones output: >2x0.2 W stereo at 32 ohms
- Headphones output connector: 3.5mm stereo phone jack
- RF input impedance: 50ohm
- RF input connector: BNC Type - female
- AC power: 85~264VAC; 120~370VDC, full range universal input, can also work from 12-15V DC
- Power consumption: approx 20W from AC
- Operating temperature range: -15 to 50C
- Dimensions : 483 x 44 x 130 mm , rack std. 19”1U
- Weight: 2Kg



 What is Included:

---

• CyberMaxLink8000+  TX+RX includes receiver and 20W transmitter, mains power supply for both is included

Note:

---

• At the time of ordering please specify 10MHz frequency band, for example 210-220MHz.
