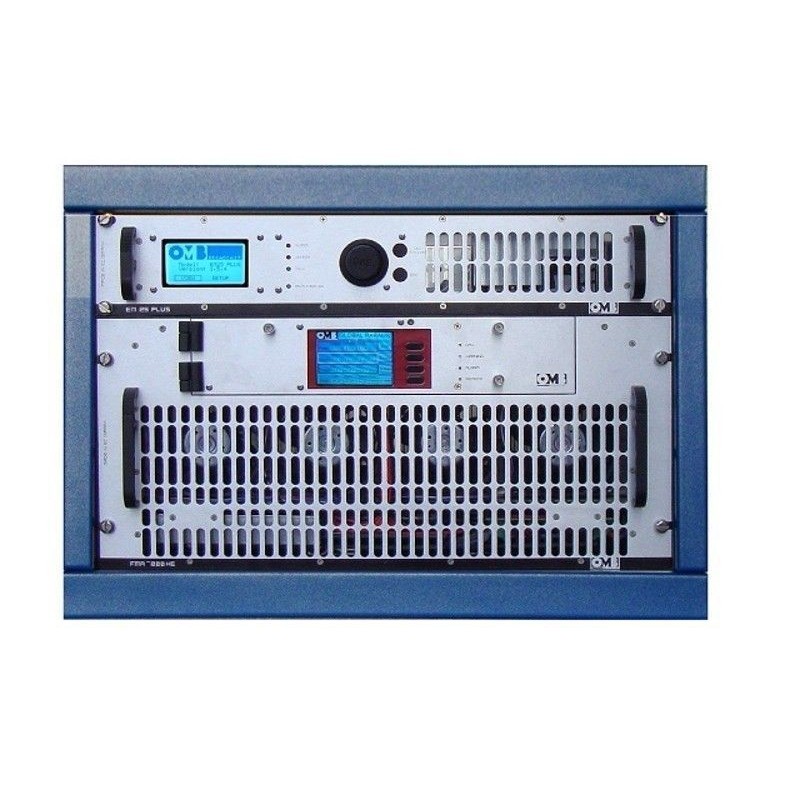

5KW FM Zender, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE DIG Vergrößern

hohe Effizienz 5 kW FM Zender EM 5000 He Digital | DMR -Elektronik

OMB

EM 5000-DIG

Der 5 -kW -FM -Sender EM 5000 He Dig Plus wurde vom OMB -Entwicklungszentrum für hocheffiziente Sender erstellt. Es besteht aus dem hohen Effizienz von 5 kW -Verstärker, FMA 5000 HE mit 72% Effizienz und dem EM 25 Dig Plus, einem 25 -W -FM -Sender. Der hohe Effizienz von 5 kW -Verstärker hat einen ungefähren Verbrauch von 6600 VA bei 230 VAC. Daher zahlt es sich in kurzer Zeit aufgrund seines niedrigen Verbrauchs aus. Dieser 5 -kW -FM -Sender ist auch in der Dual -Laufwerk -Version

erhältlich

Achtung: Letzte verfügbare Teile!

Sammeln Sie mit dem Kauf dieses Artikels bis zu 1330 Treuepunkte. Ihr Warenkorb hat insgesamt 1330 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 266,00.


€ 26.609,99

Mengenrabatt

Menge Rabatt Sie sparen
2 2% Bis zu € 1.064,40
4 4% Bis zu € 4.257,60
6 6% Bis zu € 9.579,60
8 8% Bis zu € 17.030,39
10 10% Bis zu € 26.609,99

Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
Kostenloser Versand Kostenloser Versand in NL
Volumenrabatt Volumenrabatt
Bonus-System Bonus-System
Sichere Zahlung Sichere Zahlung
Geld-zurück-Garantie Geld-zurück-Garantie
Trustpilot Trustpilot

Mehr Infos hohe Effizienz 5 kW FM Zender EM 5000 He Digital | DMR -Elektronik

Product Discription:

MAIN ADVANTAGES OF THE EM 5000 HE DIG PLUS FM TRANSMITTER MANUFACTURED BY OMB:

  •  AC Efficiency: 72% (typical value). RF Efficiency RF: 84% (typical value)
  • 6 amplifying modules of 1000W with MOSFET technology
  • 3 independent switching power supplies connected in parallel so if there is a failure in any of them the equipment maintains its operation
  • TFT screen and touch keyboard for the control and visualization of operational parameters.
  • Memory registration of events
  • Control of the speed of cooling fans depending on the temperature at the power modules for optimizing power consumption and decreasing acoustic contamination
  • Advanced protection against load mismatches without interrupting the transmission and ultra-fast protection in case of excessive reflected power and input power
  • Analog telemetry, digital RS232 remote control and telemetry, remote control by opened/closed contacts
  • Low pass filter, EMI filters and internal single-phase transient suppressor
  • Automatic power reduction at night if the amplifier is combined with the EM 25 DIG PLUS
  • Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value
  • Automatic power reduction in case of failure of one of the power supplies and in case of excessive reflected power.
  • Automatic voltage control for efficiency optimization
GENERAL CHARACTERISTICS



AMPLIFIER FMA 5000 HE
FREQUENCY RANGE 87.5-108MHz
INPUT RETURN LOSS -20dB
INPUT POWER <25W
OUTPUT POWER 5KW nominal, manual and automatic adjustable
POWER GAIN >21.3dB minimum
TOTAL EFFICIENCY >73% typical
RF EFFICIENCY 84% typical
COOLING Forced air, speed control of fans
HARMONICS LEVEL <-82dBc
INPUT/OUTPUT IMPEDANCE 50Ω
RF INPUT CONNECTOR N(F)
RF OUTPUT CONNECTOR EIA 7/8" or EIA 1+5/8" (under request)
RF MONITOR CONNECTOR BNC(F)
POWER SUPPLY 230VAC single phase, 230-380VAC three phase
CONSUMPTION 6600VA (@5000W output power)
PROTECTIONS Reflected power, forward power, overdrive, and overcurrent in power modules. Smart temperature protection. Ultra-fast protection against reflected and input power. Real time registration of events. Exciter’s inhibition
TELEMETRY AND REMOTE CONTROL Analog telemetry (direct and reflected power measurements). Digital telemetry and remote control RS232. Remote control by opened/closed contacts
OPERATION TEMPERATURE -5 to +40°C
WEIGHT 55Kg approx. (without rack)
DIMENSIONS 5 standard rack units of 19" (height), 850mm (depth)



EXCITER EM 25 DIG PLUS
FREQUENCY RANGE 87.5-108MHz
FM MODULATION 75KHz (adjustable) peak deviation. Mono 180kF3E and Stereo 256kF3E
AUDIO/MPX INPUT LEVEL -3.5 @ +12.5dBm @ 75KHz deviation
AUDIO INPUT CONNECTORS XLR(F)
AUXILIARY CHANNEL (RDS/SCA) INPUT LEVEL 7.5KHz deviation: -12.5 to 3.5dBm and 2KHz deviation: -24 to -8dBm
AUX. CHANNEL INPUT IMPEDANCE 10kOhm
MODULATION DISTORTION 7.5Khz deviation: <0.05%, 0.02% typical; 2KHz deviation: <0.2%, 0.05% typical
S/N MONO RATIO 30 to 20000Hz: >76dB, 86dB typical, CCIR: >75dB, 81dB typical



Technical specifications:



S/N STEREO RATIO 30 to 20000Hz: >72dB, 77dB typical, CCIR: >68dB, 72dB typical
AUDIO CHANNELS BANDWIDTH 30 to 15000Hz ±0.1dB
PRE-EMPHASIS TIME CONSTANT Selectable, 25/50/75 microseconds
RF NOMINAL OUTPUT POWER 25W
TUNING STEPS OF TRANSMITTER 10/100KHz
ALC OUTPUT POWER STABILITY ±3%
SPURIOUS AND HARMONIC EMISSIONS <80dBc
RF OUTPUT IMPEDANCE 50Ω
RF INPUT POWER CONNECTOR N
RF SAMPLING CONNECTOR BNC
POWER SUPPLY 110-230Vac ±15% 50-60Hz
OPERATION TEMPERATURE RANGE 0 to 40°C recommended, -10 to 55°C max.
RELATIVE HUMIDITY Up to 95% without condensation
DIMENSIONS 484x300x90mm, 2 standard rack units of 19"
WEIGHT 7Kg
