15-2.700 MHz | DMR -Elektronik

Product discription:

RF spectrum analyser, 15-2,700 MHz, in a compact aluminium housing with two antennas (SMA connection) for the different frequency ranges, among other things, for preventing frequency collisions when setting up radio links in the frequency range mentioned above.

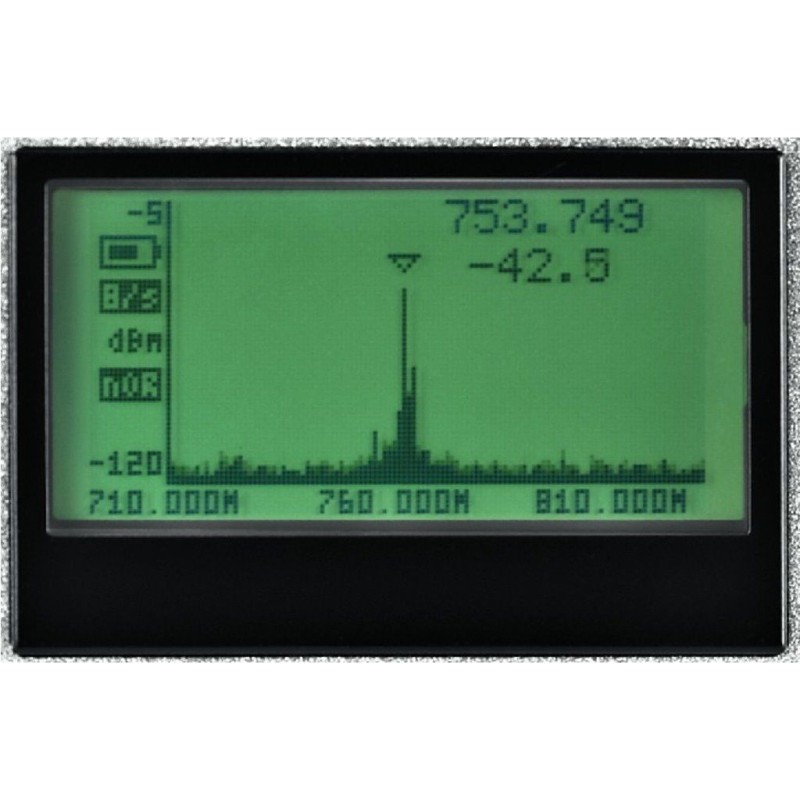

• Real-time monitoring of the frequency range used with indication of frequency and level (dBm and dBµV)
• Backlit high-contrast graphic display (128x64 pixels)
• Automarker function and manual marker positioning for setting an individual carrier frequency

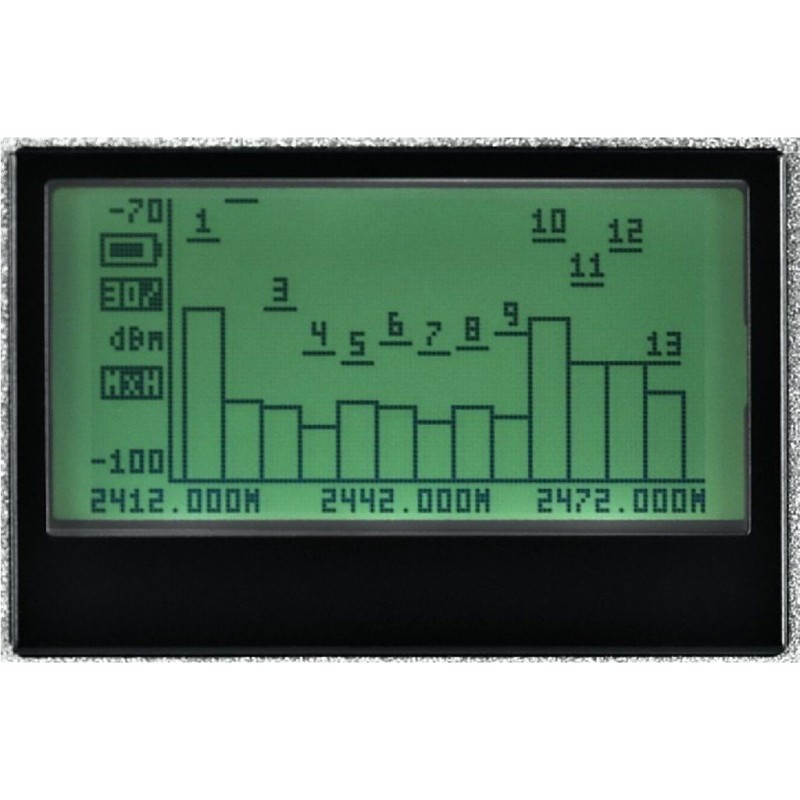

• Special Wi-Fi analyser with display of 13 WLAN channels
• Max hold function for a reliable detection of ultra-short RF carrier frequencies (additional modes: normal, max., average, overwrite)
• Mini USB 2.0 interface for connecting to a PC or laptop as well as for charging the built-in rechargeable lithium polymer battery (860 mAh)

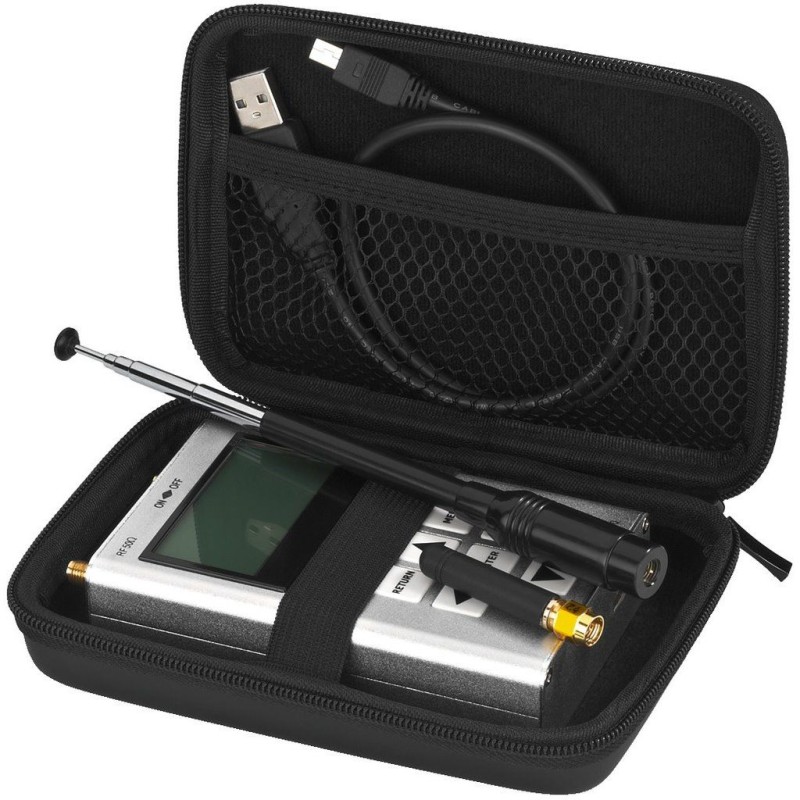

• Supplied with transport bag and USB cable
• Client software with real-time analysis for Windows* XP/Vista/Win7/Win8 (32-bit or 64-bit versions) can be downloaded at www.monacor.com
• Dimensions: 71x122x25 mm
• Weight: 200 g
