D&R Axite

The Axite is D&R's latest addition to their range of modular broadcast consoles. This system offers flexibility, scalability, and high-quality performance, making it suitable for a wide range of applications, from small local studios to large-scale production environments.

By buying this product you can collect up to 547 loyalty points. Your cart will total 547 loyalty points that can be converted into a voucher of € 109,40.


€ 10.959,99

Volume discounts

Quantity Discount You Save
2 2% Up to € 438,40
4 4% Up to € 1.753,60
6 6% Up to € 3.945,60
8 8% Up to € 7.014,39
10 10% Up to € 10.959,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money Back Guarantee Money Back Guarantee
Trustpilot Trustpilot

Product information D&R Axite Digital Modular Network-based Broadcast Console

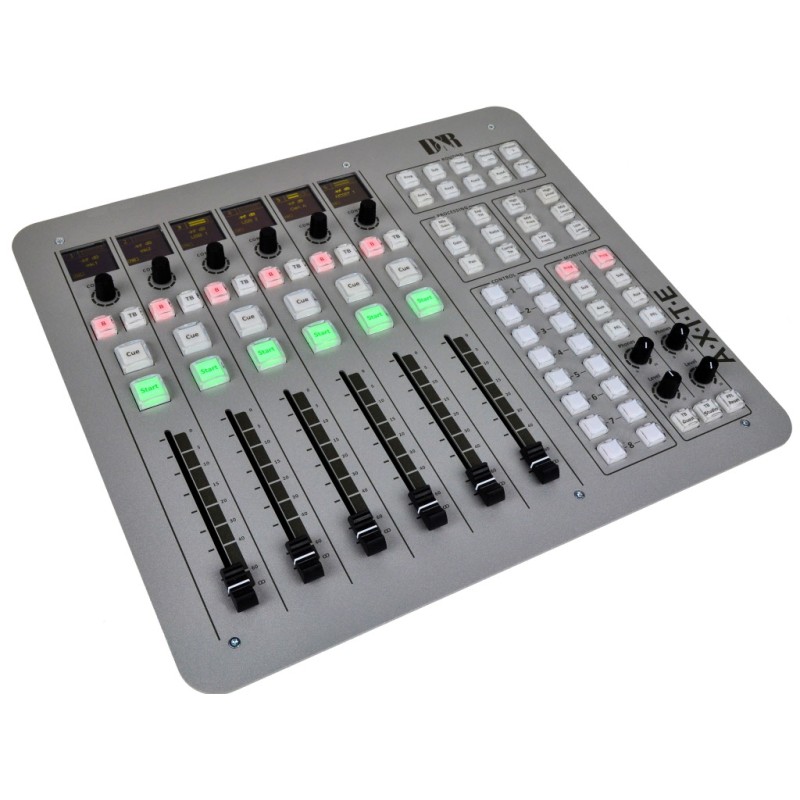

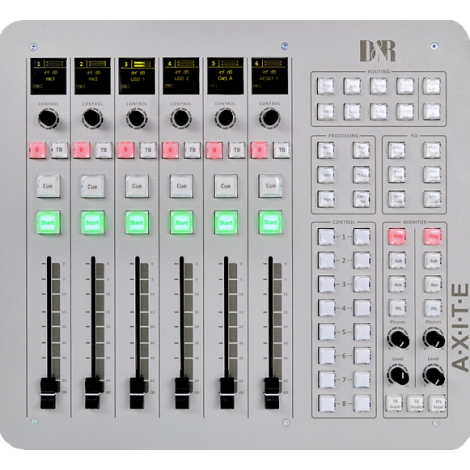

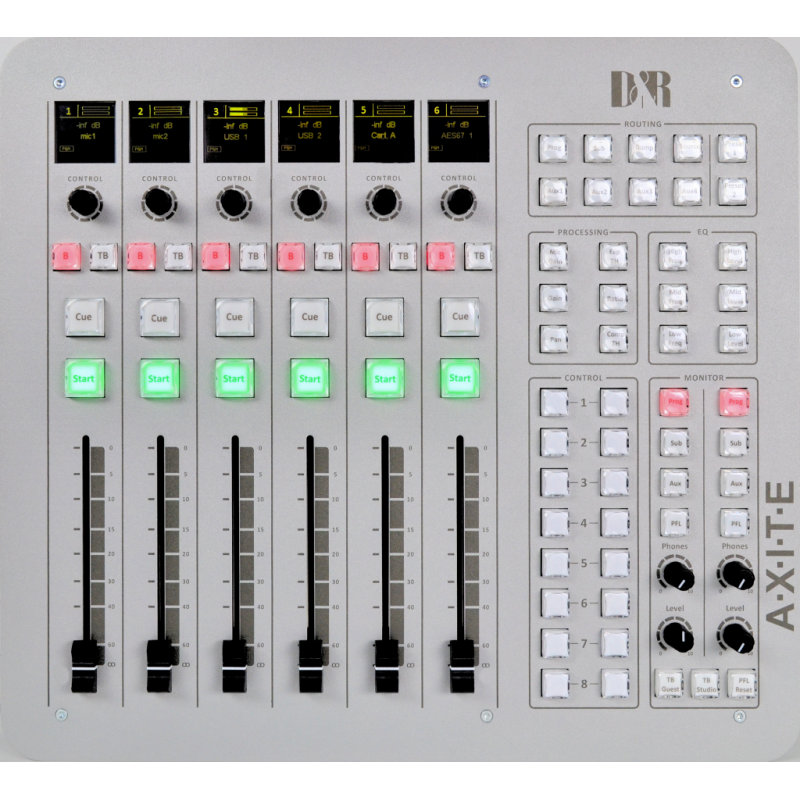

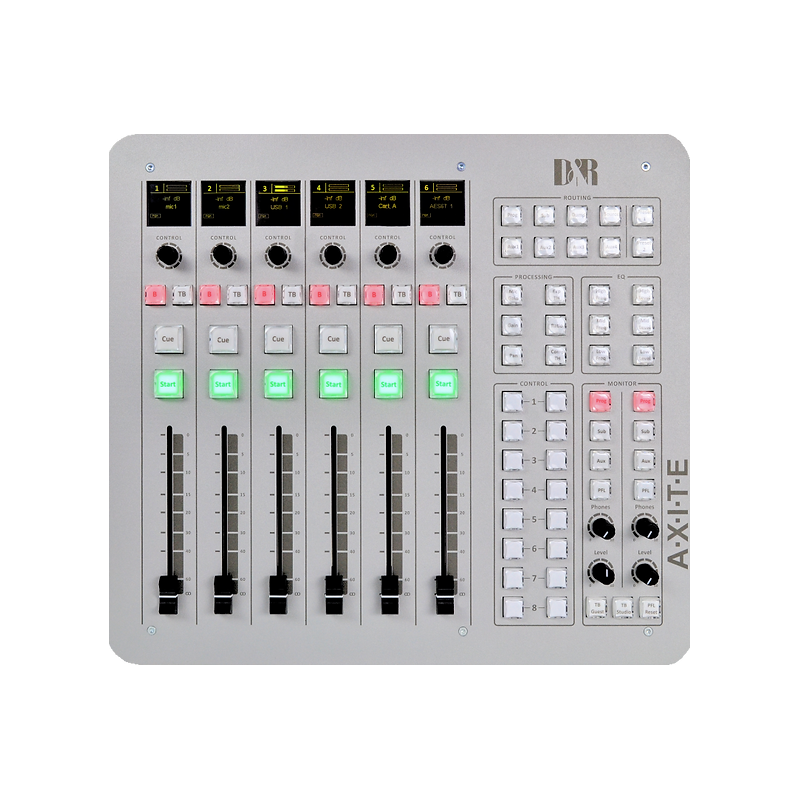

The Axite is designed as a future-proof, modular digital mixing console. With its network-based architecture, it is ideal for standardization in professional radio and television broadcasting. Thanks to its configurable control surfaces and I/O racks, the Axite can meet various requirements, from compact 6-fader setups to full 128-fader configurations.

This example configuration includes 12 motorized faders and a CRM/Studio section, ready for immediate use. The system is powered by an I/O rack equipped with advanced cards for signal processing and connectivity.

Specifications of the Example Configuration

Control Surface

  • Faders: 12 motorized faders.
  • Controls:
    • 97 switches.
    • 12 encoders.
    • 4 potentiometers.
  • Interface: User-friendly design for intuitive operation.

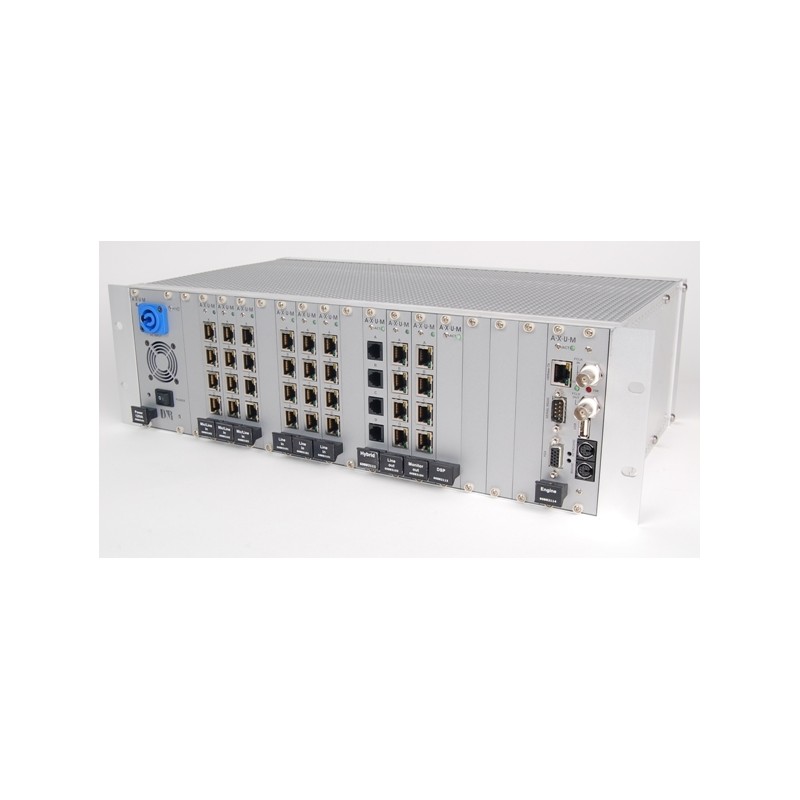

I/O Rack Configuration

  • Rack Engine: 1x Axum Rack Engine.
  • Power Supply: 1x Axum Power Supply.
  • DSP Processor: 1x DSP processor supporting 32 stereo channels.

Installed Cards

  1. Mic AD:
    • 4 microphone inputs.
    • 8 GPIO (General Purpose Inputs/Outputs).
  2. Line AD (2 cards):
    • 8 mono or 4 stereo line inputs per card.
    • 8 GPIO per card.
  3. Line DA:
    • 8 mono or 4 stereo line outputs.
    • 8 GPIO.
  4. D/D Card:
    • 4 AES3 inputs/outputs with sample rate conversion.
    • 8 GPIO.
  5. CRM DA Card:
    • 2 stereo channels.
    • 2 headphone outputs.
    • 8 GPIO.

Break-out Panels

  • 4 break-out panels included for easy connection access.
  • 8 blank panels available for future expansion.

Connectivity and Capabilities

  • Mono Inputs: 20.
  • Mono Outputs: 24.
  • GPIO: Up to 80 inputs/outputs.

Key Benefits

  1. Modularity: Configurable I/O and fader surfaces for custom setups.
  2. Network-based: Utilizes AES67 and Dante networks for seamless integration with other systems.
  3. Scalability: Suitable for small studios (6 faders) to large productions (up to 128 faders).
  4. High-quality audio: DSP processing ensures crystal-clear sound.
  5. Easy expandability: Add more I/O cards or faders as your needs grow.
  6. Professional configuration: Designed for 24/7 operation in critical broadcast environments.

The Axite Digital Broadcast Console combines flexibility and reliability, making it an ideal choice for modern studios looking for a modular and future-proof solution. For more information, visit the official D&R Broadcast website.
