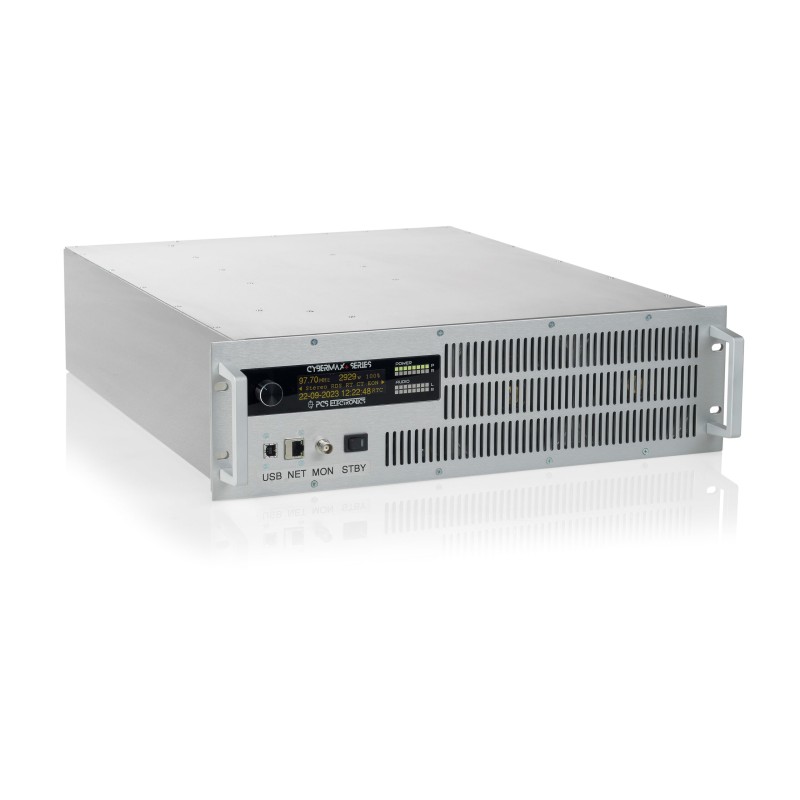

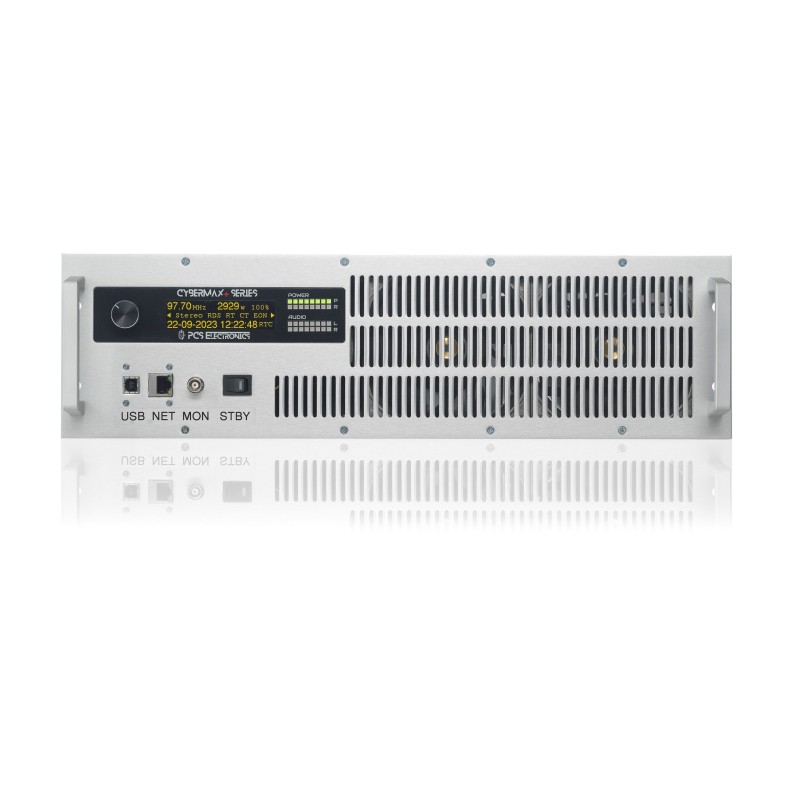

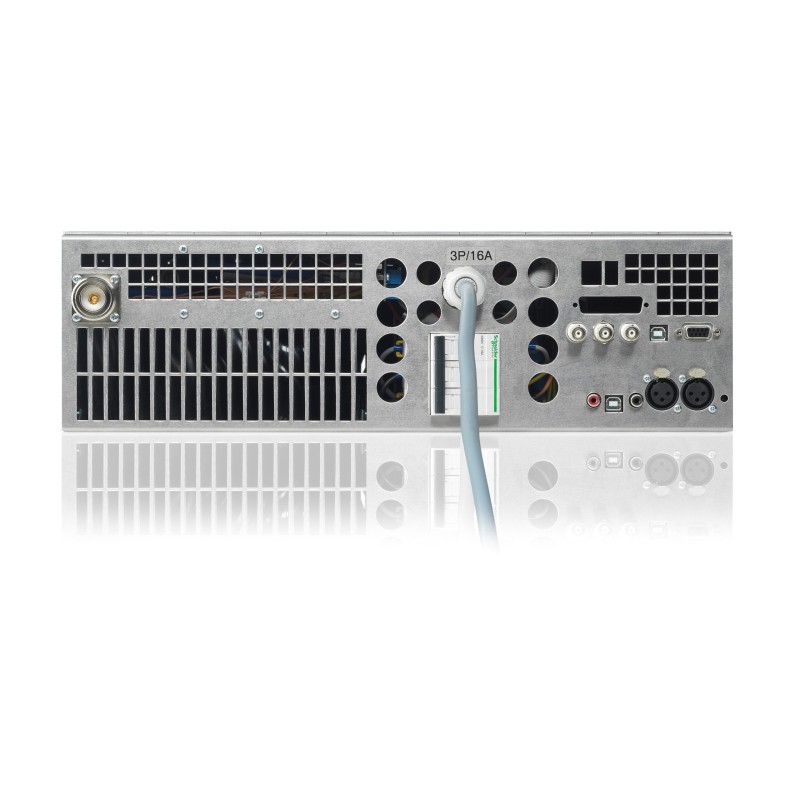

DAB+ 20W digital transmitter
DAB+ 20W digital transmitter
PCS-ElectronicsDAB-P-20-W
The CyberMax DAB+ SE transmitters deliver reliable performance with output powers ranging from 20W to 800W. Supporting DAB+ and universal power input, they are ideal for professional broadcasting applications.
lead time 3 weeks
By buying this product you can collect up to 121 loyalty points. Your cart will total 121 loyalty points that can be converted into a voucher of € 24,20.
Product information DAB+ 20W digital transmitter
The CyberMax DAB+ SE transmitters are cutting-edge solutions designed for professional radio broadcasting. With output power options of 20W, 400W, and 800W, these transmitters offer exceptional performance and reliability tailored to meet the needs of modern broadcasting systems.
Operating within a frequency range of 175-225MHz, they ensure high-quality DAB+ transmission. With a VSWR of less than 2:1 and a 50 Ohm output impedance, these transmitters provide stable and efficient performance. Integrated monitoring LEDs alert users to SWR and temperature warnings, while the Ethernet audio input ensures seamless connectivity.
Technical Specifications – RF Section:
- Output Power: 20W, 400W, or 800W (depending on the model).
- Output Impedance: 50 Ohm unbalanced.
- Frequency Range: 175-225MHz.
- Output Connector: N (20W) or 7/16 (400W/800W).
- Mask Filter Required: Tuned to meet DAB+ channel specifications. (read more)
- Monitoring: SWR/TEMP warning LEDs.
Technical Specifications – General:
- Power Supply: 110-240V, 50/60Hz universal input.
- Operating Temperature: -5°C to +45°C.
- Dimensions:
- 20W: 19” x 170mm x 2RU (88mm).
- 400W/800W: 19” x 550mm x 3RU (132mm).
- Weight: 4kg (20W), 12kg (400W), 20+kg (800W).
Key Features:
- Software Compatibility: Works with ODR-DabMUX for ETI stream generation.
- Network Interface: 10/100Mbit Ethernet.
- Synchronization: Supports SFN mode with advanced hardware upgrades.
- Configuration: Easy setup via a web-based interface.
What You Need:
- An ETI stream, generated with ODR-DabMUX (not included).
- A suitable antenna and coaxial cable.
- A universal power plug (country-specific).
Why Choose CyberMax DAB+ SE?
With robust construction, reliable performance, and advanced features, the CyberMax DAB+ SE transmitters are the perfect choice for broadcasters seeking a powerful and flexible solution for DAB+ transmission. Designed for global compatibility, these transmitters work seamlessly in any environment, ensuring world-class broadcasting quality.
