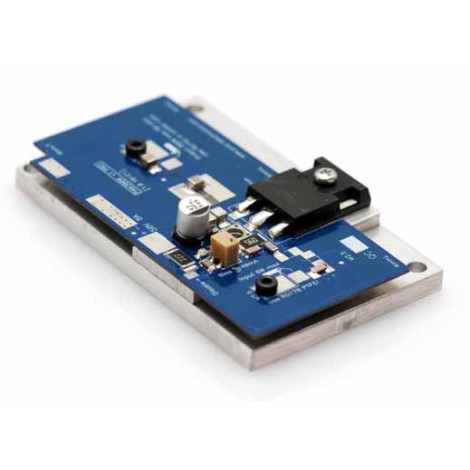

250W FM Planar Pallet Amplifier

250W FM Planar Pallet Amplifier

The 250W FM planar pallet amplifier is a high-performance RF module designed for professional FM broadcast systems. Its compact and efficient design utilizes planar technology, ensuring robust and reliable operation.

Key Features:

• Output Power: 250W
• Frequency Range: 87.5 - 108 MHz
• High Efficiency: Optimized for minimal heat generation and maximum power output.
• Planar Technology: Ensures consistent performance, high linearity, and enhanced durability.
• Cooling: Designed for effective thermal management, ideal for continuous operation in demanding environments.
• Input Power: Low drive requirements for easy integration with existing systems.
• Protection: Built-in safeguards against over-temperature and over-power conditions.

Applications:

• Professional FM broadcasting
• High-power transmitters
• Standalone or integrated within larger RF systems

Technical Specifications:

• Supply Voltage: 28-50V DC (check specific model details)
• Input Power: Typically 2-5W
• Gain: High gain for low input drive compatibility
• Impedance: 50 Ω

This amplifier is ideal for broadcasters seeking reliable and efficient RF amplification for FM transmission.
