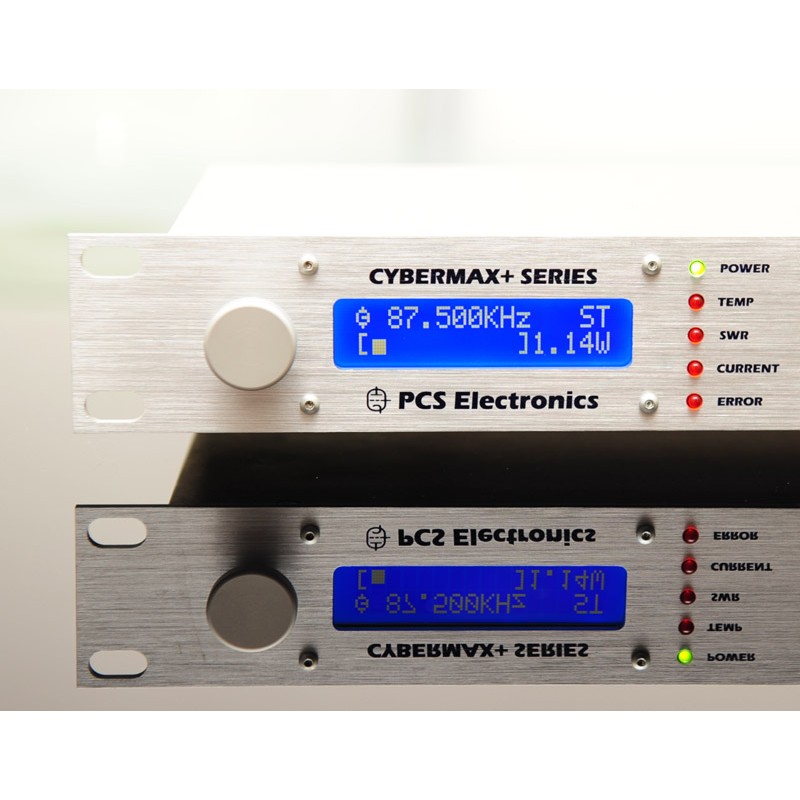

FM transmitter package 25 Watt RDS Stereo

product discription:

FM tranmitter package 25 Watt ideal for mobile installations our smal local radio stations. This package is also perfect for mobile drive-in cinema.

This package comes with:

• RDS
• DSP Stereo

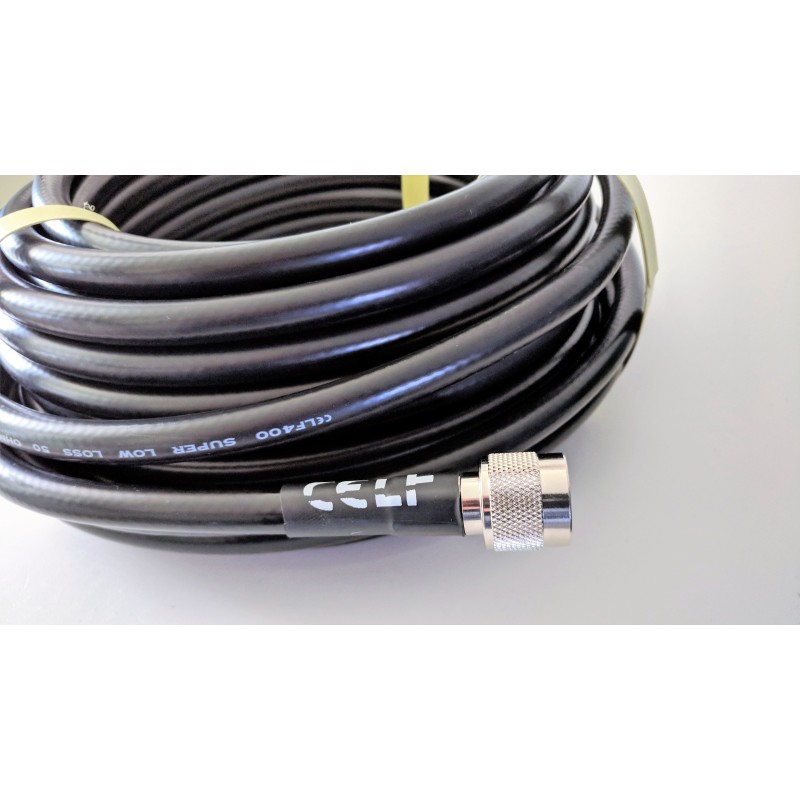

• Coaxcable 7 meter

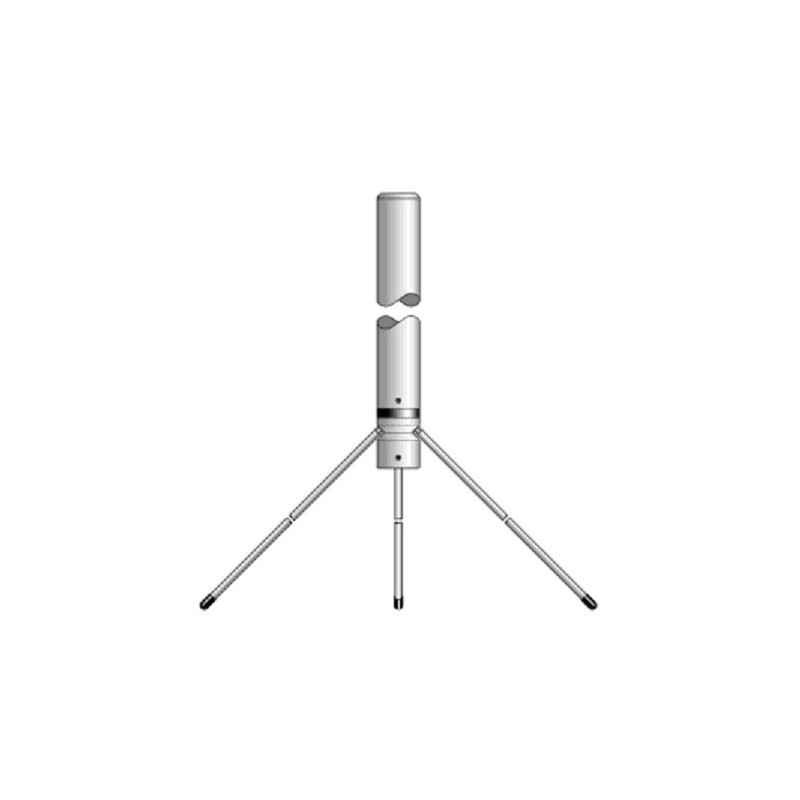

• Sirio GP antenna
• 12V powersupply

Technical facts:

RF SECTION:
- Output power: 1W, 5W, 15W, 25W depending on the model, easily adjustable via LCD display (100 steps)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: BNC female for 1H units, N female for ECO unit
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ +- 1MHz min. out of carrier
- RF Harmonics > -60 dBc min, -70dBc typ
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION:
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL:
- Ambient temperature: -5° to +45°C
- Power supply: 15V 3A min for 15W, 5A min for 25W (ordered separately)

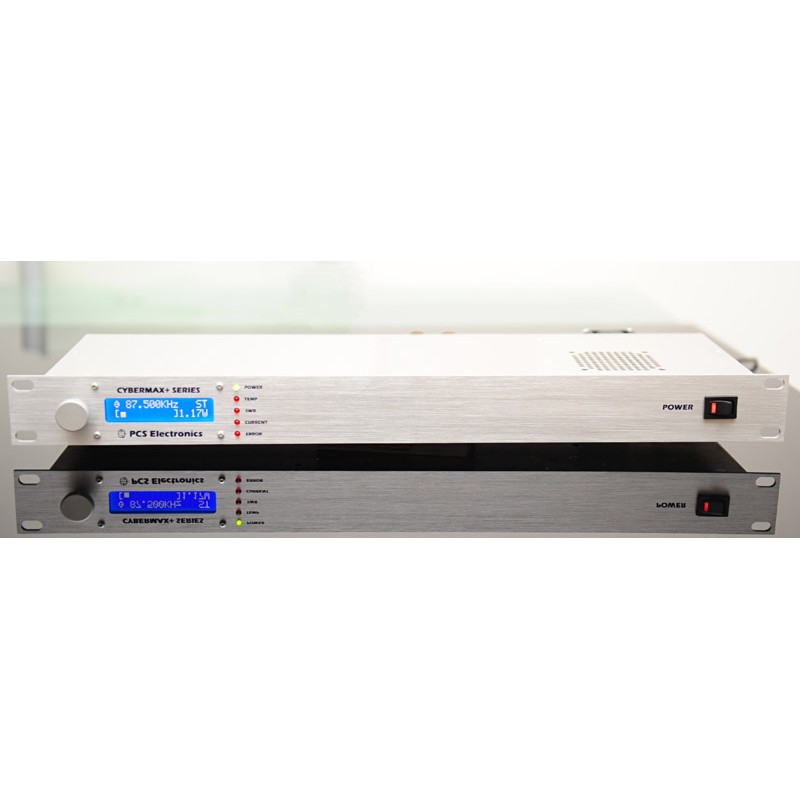

- Standard 19"1HE rack, 125mm deep (about 5"), 4kg (volumetric)
- Eco units: 115mmx90mmx230mm (WxHxL), 2Kg volumetric
