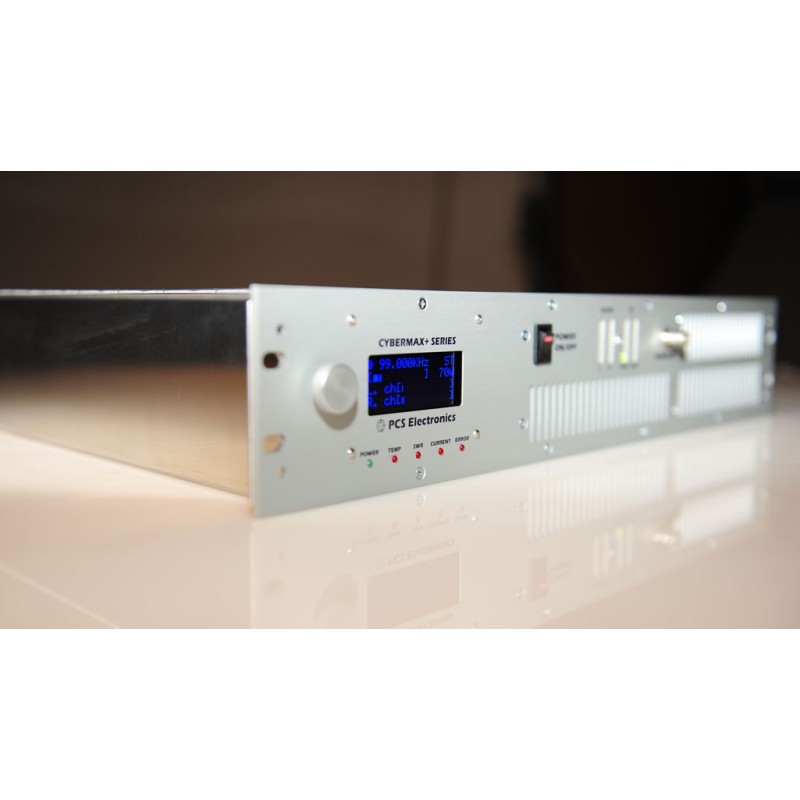

CYBERMAXFM+ SE V3 600W FM transmitter with DSP and RDS

CYBERMAXFM+ SE V3 600W FM transmitter with DSP and RDS View larger

CYBERMAXFM+ SE V3 600W FM transmitter with DSP and RDS

PCS-Electronics

New

The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters

Delivery up to 3 weeks

By buying this product you can collect up to 130 loyalty points. Your cart will total 130 loyalty points that can be converted into a voucher of € 26,00.


Find similar products

transmitter

rds.mpx

fm transmitter

dsp

€ 2.249,99

Model

Volume discounts

Quantity Discount You Save
2 2% Up to € 90,00
4 4% Up to € 360,00
6 6% Up to € 810,00
8 8% Up to € 1.439,99
10 10% Up to € 2.249,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information CYBERMAXFM+ SE V3 600W FM transmitter with DSP and RDS

Product discription:

The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.



Technical facts:

RF SECTION
- Output power: 200W/400W/600W/800W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ +- 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to +45°C
- External dimensions 200W/400W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (200-400), 8Kg (600W), 9Kg (800W)
- Volumetric weight up to 20Kg

Note: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDS

Model name DSP
processor		 RDS
processor		 XLR
inputs		 Full unit name
SE V3 MPX No No No, just BNC for MPX CyberMaxFM+ SE V3 MPX
SE V3 STEREO + RDS Yes Yes Yes CyberMaxFM+ SE V3 STEREO DSP+RDS
