CyberNano FM Transmitter LPFM 100mW – Micro Box

New

View larger

Name: CyberNano FM Transmitter LPFM 100mW – Micro Box

Brand: PCS-Electronics

Model: 100mW - Micro Box

Condition: New

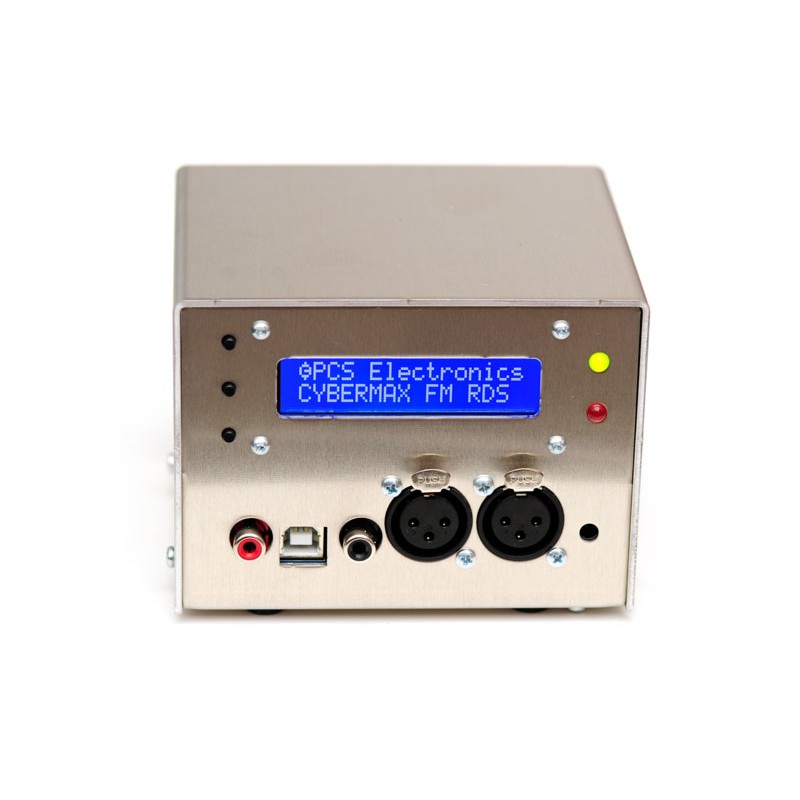

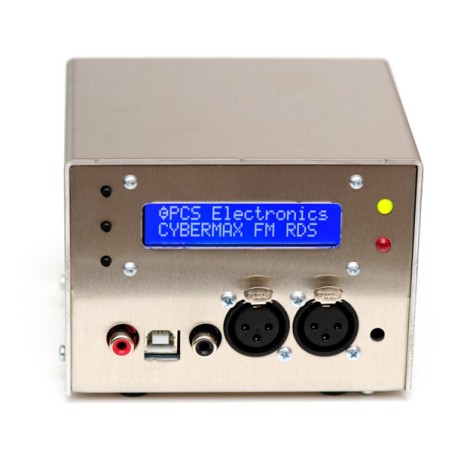

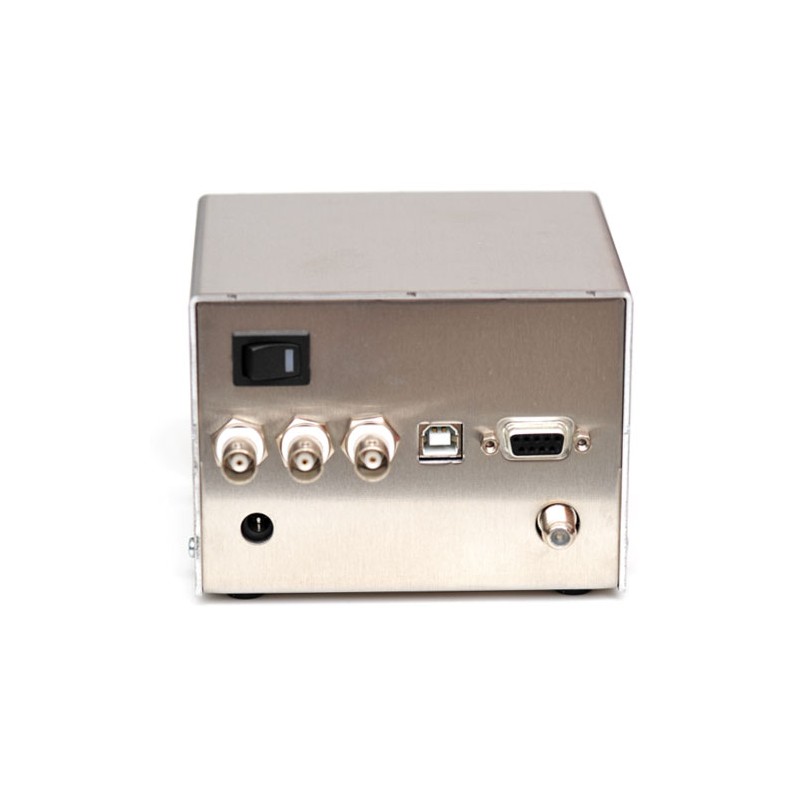

CyberNano FM Transmitter LPFM 100mW – Micro Box

Compact, Reliable, and Versatile

The CyberNano FM transmitter, built on the STMAX1000 FM transmitter board, provides a powerful and flexible solution for various applications. Featuring DSP stereo, RDS functionality, and multiple audio connectivity options, this package is designed for small radio stations, drive-in cinemas, simultaneous translation, church radio, and more.

By buying this product you can collect up to 33 loyalty points. Your cart will total 33 loyalty points that can be converted into a voucher of € 6,60.

Print Product Page

€ 664,99

Volume discounts

Quantity	Discount	You Save
2	2%	Up to € 26,60
4	4%	Up to € 106,40
6	6%	Up to € 239,40
8	8%	Up to € 425,59
10	10%	Up to € 664,99

Quantity

	Discount on your Order
	Free Shipping up to 1 KG in NL
	Volume Discount
	Bonus System
	Secure Payment
	Money-back Guarantee
	Trustpilot

Product information about CyberNano FM Transmitter LPFM 100mW – Micro Box

Advantages

Excellent Audio Quality: DSP+DDS modulation ensures clear audio and perfect stereo separation.
USB Audio Input: Direct connection to a PC or laptop for easy audio input.
High-Quality Connections: ESD-protected, RF-hardened balanced inputs.
Portable: Operates on a car battery (13.8V-15V) or mains power supply.

Applications

This transmitter is ideal for:

Simultaneous interpretation
Local community radio
Church radio and events
Drive-in cinemas and tourism
Ad-hoc or remote installations in Africa and other regions

Range

With a well-placed antenna, the range can reach up to 1 km under ideal conditions. In typical settings, expect a few hundred meters, depending on:

Antenna location and quality.
Terrain configuration.
Coaxial cable specifications and receiver quality.

Included in the Package

STMAX1000+ in enclosure
Power supply
Microcontroller with software for 76-108MHz

What Else Do You Need?

Audio Equipment: Such as a professional microphone, mixer, or a PC with audio playback software.

FAQs

What is RDS?
RDS (Radio Data System) displays station names and song titles on compatible radios. It's popular in Europe and can be programmed via a PC. Settings are retained even after the device is powered off.

How Do I Configure the Transmitter?

Cybermax FM

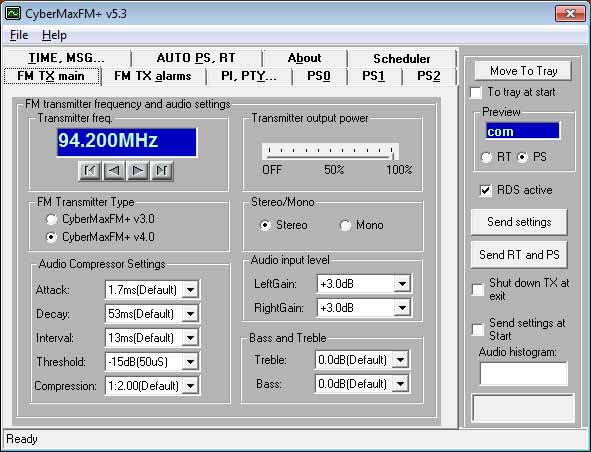

The transmitter can be controlled via USB/RS232 using PC software, allowing you to adjust parameters like frequency and audio settings.

How Do I Connect Everything?

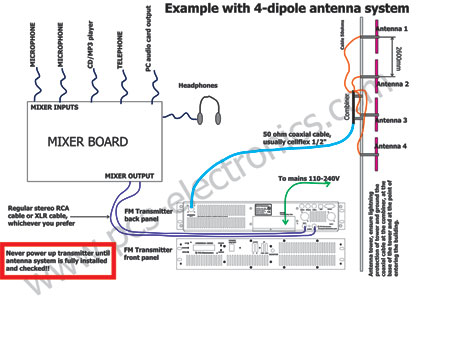

Check the diagram on our website for a detailed example of how to connect the antenna, transmitter, and audio sources.

Cybermax FM
