High-End FM-Transmitter DDS 15W 50W 75W

New High-End FM-Transmitter DDS 15W 50W 75W View larger

: PCS-Electronics

:

: New

: FM Transmitters

: High-End FM-Transmitter DDS 15W 50W 75W

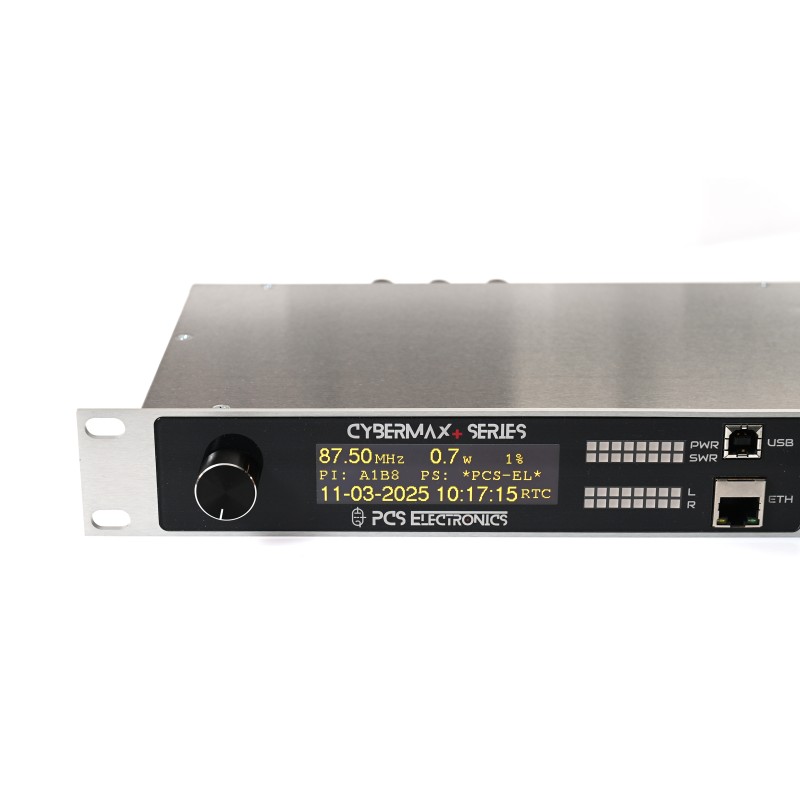

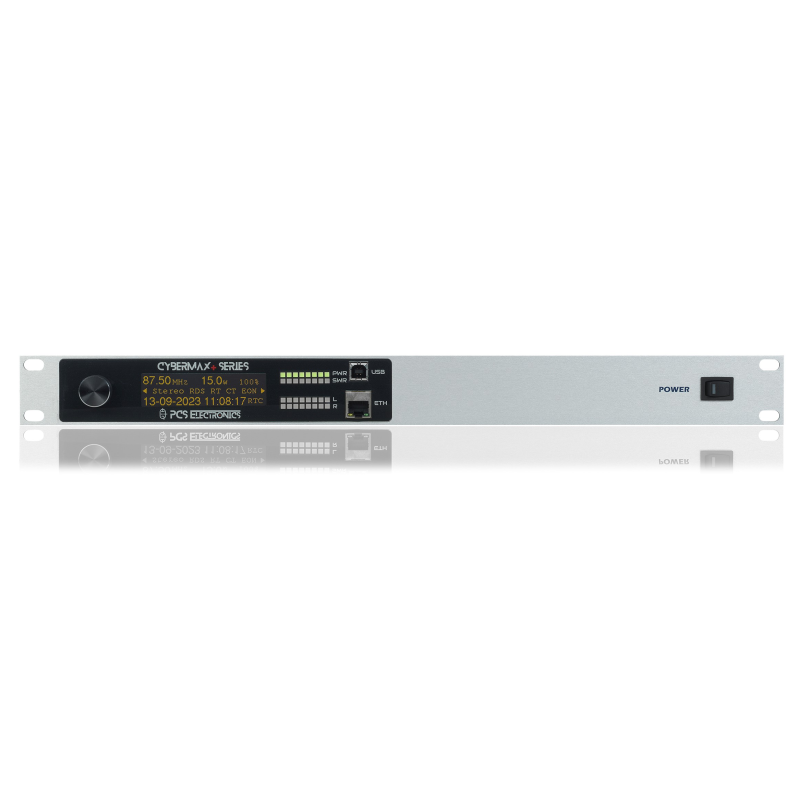

CYBERMAXFM+ BE+ DDS – Professional FM Transmitters with Digital Precision and Maximum Control

The new CYBERMAXFM+ BE+ DDS series, available in 15W, 50W, and 75W models, is the ultimate choice for demanding broadcasters. These Black Edition (BE+) transmitters combine legendary reliability with cutting-edge digital technology and advanced control features.

By buying this product you can collect up to 95 loyalty points. Your cart will total 95 loyalty points that can be converted into a voucher of € 19,00.


€ 1.599,99

Power FM-DDS

Volume discounts

Quantity Discount You Save
2 2% Up to € 64,00
4 4% Up to € 256,00
6 6% Up to € 576,00
8 8% Up to € 1.023,99
10 10% Up to € 1.599,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information High-End FM-Transmitter DDS 15W 50W 75W

Thanks to Direct Digital Synthesis (DDS) technology, they set a new standard in audio quality, signal stability, and user-friendliness—perfect for FM radio, community stations, event broadcasting, mobile setups, or studio links.

Key Features:

  • Ultra-deep bass down to DC

  • Infinite stereo separation

  • Pure digital transmission via AES/EBU and 192kHz USB—no AD/DA conversion

  • Fully digital stereo and RDS encoder

  • Compatible with StereoTool and MicroMPX

  • GPS synchronization and SFN support

  • Firmware upgradeable via USB

  • OLED display and redesigned housing for improved ventilation

  • 5-year warranty for ultimate peace of mind

Complete Control and Connectivity:

  • Bright graphical LCD (122x32) and OLED display

  • Web interface via Ethernet—accessible even from mobile devices

  • Full RDS configuration via display or web interface

  • UECP RDS support—compatible with any studio software

  • RBDS (US) and national character set support

  • Built-in scheduler for automatic power changes twice daily

  • Internet-based time sync with automatic daylight saving adjustment

Streaming Ready:

  • Supports streaming receivers and MP3 playback via USB

  • Song titles from streaming or MP3 appear on the display and are transmitted via RDS

Technical Specifications:

RF Section:

  • Output power: 1 to 75 watts (depending on model), adjustable in 100 steps

  • Frequency range: 87.5 to 108 MHz

  • Output impedance: 50 Ohms unbalanced (BNC connector)

  • Spurious emissions: better than -75 dBc at ±1 MHz

  • Harmonics: better than -60 dBc, typically -70 dBc

  • Modulation: FM

  • Supported RDS groups: PS, RT, CT, AF, EON, PTY, TA, TP, ECC, DI, UECP

  • RDS time accuracy: ±0.1 seconds

Audio Section:

  • Inputs: 2x XLR analog, 1x AES/EBU XLR, USB (192kHz direct)

  • Input levels: 4dBu or -10dBu, widely adjustable

  • Input impedance: 10 kOhm balanced

  • Pre-emphasis: Flat, 50 or 75 µs (selectable)

  • THD: less than 0.05%

  • Stereo separation: more than 80 dB

  • Frequency response: 30 Hz to 15 kHz (±0.1 dB)

  • Stereo/Mono switching via display or remote control

General:

  • PWM-controlled fan (for 50W and 75W models) for ultra-quiet operation

  • Operating temperature: -5°C to +45°C

  • Power supply: 15V (included, mains cable sold separately)

  • Enclosure: Standard 19" rack, 1U, 125 mm deep

  • Weight: approx. 4 kg

Included in the Box:

  • CYBERMAXFM+ BE+ DDS transmitter (15W, 50W or 75W)

  • USB cable

  • Short Ethernet cable

  • 15V power supply

  • Mains power cable not included—please select the correct one for your country

Why Choose This Transmitter?

This transmitter delivers studio-grade audio, full remote web control, compatibility with digital workflows and RDS, and is built for continuous, reliable operation. No tuning required, no complicated setup—just plug it in, set your frequency and power, and you're ready to broadcast, whether live or in the studio.

A powerful transmitter for serious broadcasters. Future-ready.

Accessories for - High-End FM-Transmitter DDS 15W 50W 75W
