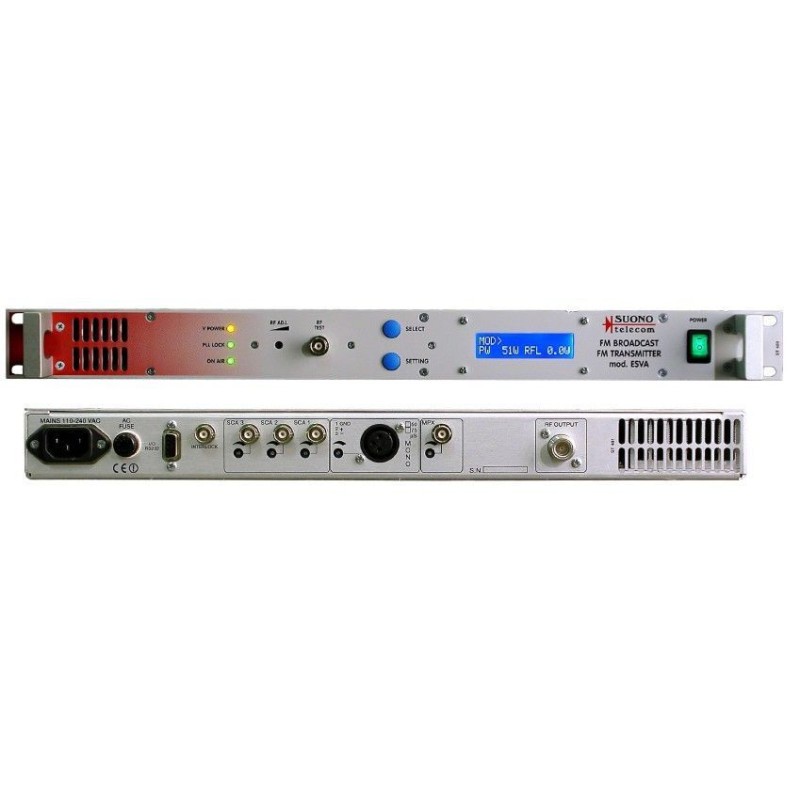

Suono ESVA 20 FM Transmitter

Suono ESVA 20W FM Zender View larger

Suono ESVA 20 FM Transmitter

Suono

New

Suono ESVA 20W FM Transmitter (Mono/MPX)

Delivery time 5 - 15 working days

By buying this product you can collect up to 54 loyalty points. Your cart will total 54 loyalty points that can be converted into a voucher of € 10,80.


Find similar products

stage

transmitter

fm

suono

€ 939,99

RDS

  • Inbouw RDS encoder

  • Zonder RDS

Volume discounts

Quantity Discount You Save
2 2% Up to € 37,60
4 4% Up to € 150,40
6 6% Up to € 338,40
8 8% Up to € 601,59
10 10% Up to € 939,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information Suono ESVA 20 FM Transmitter

Suono ESVA 20W FM (Mono/MPX)



Technical Facts:
  • FREQUENCY RANGE: 87.5 ÷ 108 MHz
  • MODULATION: FM
  • EMISSION CLASS: F3E
  • VCO TUNING: 25 MHz
  • FREQUENCY STABILITY: ± 2.5 ppm
  • SYNTHESIZER STEP: 10KHz
  • POWER OUTPUT: 0 ÷ 20 Watts ( 0 ÷ 50 Watts - special)
  • SPURIOUS EMISSION: < - 80 dB or better
  • HARMONIC EMISSION:< - 70 dB
  • STEREO SEPARATION:  > 55 dB @ 1KHz
  • DISTORSION:< 0.1 % (TYP. 0.06%) @ 1KHz
  • BASE BAND: 30 Hz ÷ 60 KHz within 0.15 dB
  • UNWEIGHTED S/N RATIO:> 80 dB (30Hz ÷ 15KHz 50 S RMS)
  • ASYNCRONOUS AM S/N Ratio:  70 dB Ref. 100% AM 400Hz
  • SYNCRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
  • PRE-ENPHASIS: 50 OR 75 μS int. selectable
  • RF OUT CONNECTOR: N-F 50 Ohm
  • MPX INPUT CONNECTOR:BNC-F
  • MPX INPUT IMPEDANCE:2 KOhm
  • SCA INPUT CONNECTOR: 3 BNC-F
  • COOLING:  Forced air by two brushless fans
  • OP.TEMPERATURE RANGE: - 10 ÷ +45 °C
  • MAXIMUM UMIDITY: 90 %
  • AC SUPPLY: 100 ÷ 240 VAC - 47 ÷ 63 Hz
  • DIMENSION:1 unit rack 19", 405mm depth
  • WEIGHT: 5 Kg
