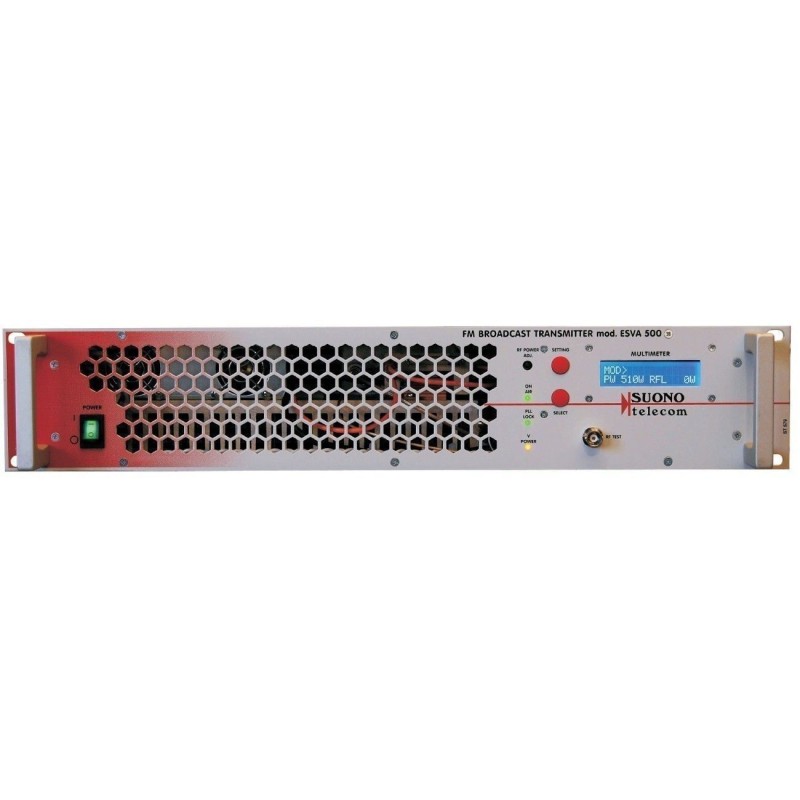

Suono ESVA 500W FM Transmitter (Mono/MPX)

By buying this product you can collect up to 151 loyalty points. Your cart will total 151 loyalty points that can be converted into a voucher of € 30,20.


€ 2.879,99

RDS

  • Inbouw RDS encoder

  • Zonder RDS

Volume discounts

Quantity Discount You Save
2 2% Up to € 115,20
4 4% Up to € 460,80
6 6% Up to € 1.036,80
8 8% Up to € 1.843,19
10 10% Up to € 2.879,99

Delivery time 5 - 15 working days

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information Suono ESVA 500 Fm Transmitter


Technical Facts:
  • FREQUENCY RANGE: 87.5 ÷ 108 MHz (76 88MHz on request)
  • TYPE: FULL SOLID STATE MOS-FET-WIDE BAND
  • MODULATION: FM
  • EMISSION CLASS: F3E
  • VCO TUNING: 25 Mhz
  • FREQUENCY STABILITY: 2,5 ppm
  • SYNTHESIZER STEP: 100KHz (10KHz on request)
  • POWER OUTPUT: 0 ÷ 500 Watts
  • SPURIOUS EMISSION: < - 80 dB or better
  • HARMONIC EMISSION: < - 60 dB
  • STEREO SEPARATION: > 55 dB @ 1KHz
  • DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
  • BASE BAND: 30 Hz ÷ 60 KHz within 0.15 dB
  • UNWEIGHTED S/N RATIO: > 80 dB (30Hz 15KHz 50 S RMS)
  • ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
  • SYNCRONOUS AM S/N Ratio:  > 65 dB with FM @ 75KHz @400Hz
  • PRE-ENPHASIS: 50 OR 75 ìS int. Selectable
  • RF OUT CONNECTOR: N female
  • MPX INPUT CONNECTOR: BNC-F
  • MPX INPUT IMPEDANCE: 2 Kohm
  • SCA INPUT CONNECTOR: 3 BNC-F
  • PROTECTIONS: OVERLOAD,
  • VSWR in a fold-back reducing power
  • TEMPERATURE
  • COOLING: Forced Air
  • OP.TEMPERATURE RANGE: 0 ÷ +50 °C
  • MAXIMUM UMIDITY: 90 %
  • AC SUPPLY: 100 ÷ 240 VAC - 47 ÷ 63 Hz
  • DIMENSION: 2 unit rack 19", 470mm depth
  • WEIGHT: 12 Kg
