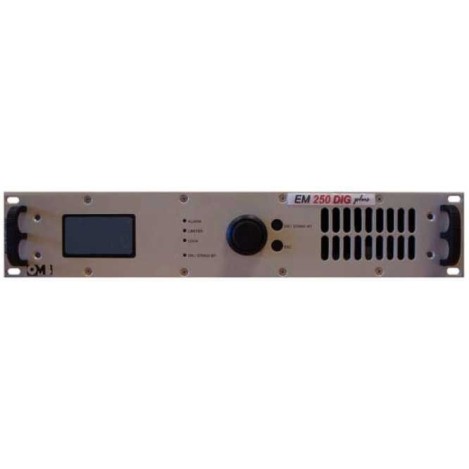

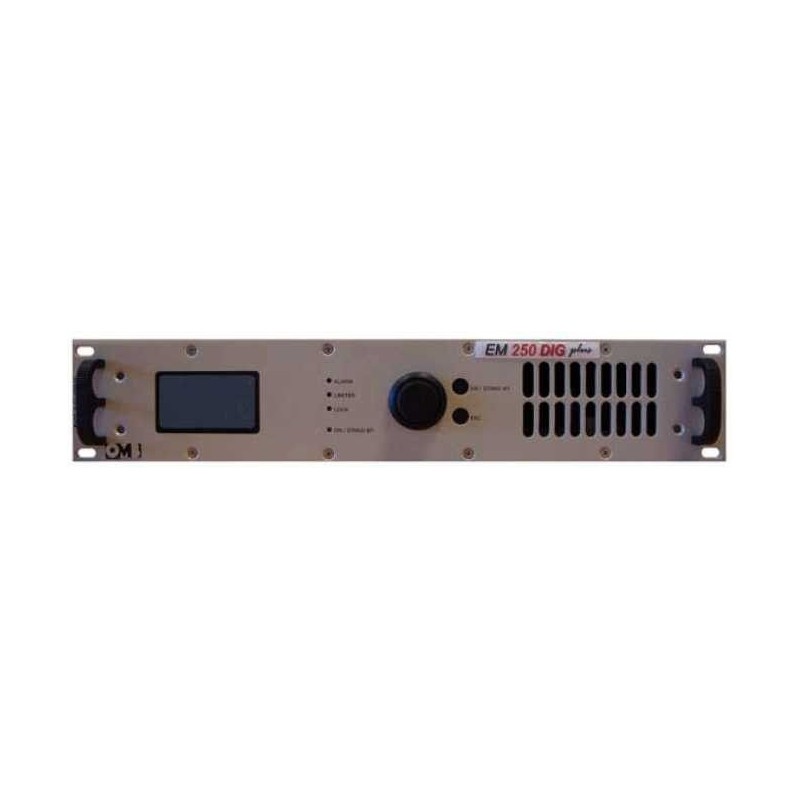

OMB Professional EM 250W DIG PLUS FM Transmitter

OMB Professional  EM 250W DIG PLUS FM Zender View larger

OMB Professional EM 250W DIG PLUS FM Transmitter

OMB

Flexibility, quality, compactness, and low electrical consumption make the devices in the EM 250 DIG PLUS the best offered on the market today. It can be supplied with an internal digital stereo generator board (60dB separation)

By buying this product you can collect up to 191 loyalty points. Your cart will total 191 loyalty points that can be converted into a voucher of € 38,20.


Find similar products

€ 3.459,99

Stereo encoder

  • Ingebouwd

  • Niet meegeleverd

Volume discounts

Quantity Discount You Save
2 2% Up to € 138,40
4 4% Up to € 553,60
6 6% Up to € 1.245,60
8 8% Up to € 2.214,39
10 10% Up to € 3.459,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money Back Guarantee Money Back Guarantee
Trustpilot Trustpilot

Product information OMB Professional EM 250W DIG PLUS FM Transmitter

 OMB EM 250W DIG PLUS FM Transmitter



The new EM 250 DIG PLUS transmitter is equipped with the most modern technology available, to provide you with maximum performance at minimal performance cost, while fully conforming to technical regulations.

Flexibility, quality, compactness, and low electrical consumption make the devices in the EM 250 DIG PLUS the best offered on the market today. It can be supplied with an internal digital stereo generator board (60dB separation).
These are just a few of the advanced characteristics that make the EM 250 DIG PLUS truly unique:

  • Super-compact size and reduced weight
  • Low performance costs.
  • Sturdy modular construction.
  • Easy to use and to configure. The transceiver uses a control interface, which is equipped with a large LCD screen, a multifunction knob, and few other buttons.
  • Nominal RF output power over the full FM range particularly stable against time.
  • Power section entirely modular and highly reliable.
  • RF output stage has a reverse intermodulation figure lower than the standard bipolar construction.
  • Low level of dissipation.
  • Stable, reliable power supply.
  • Easy diagnostics and easy-to-read parameters.
  • Compliance with the strictest regulations
















Technical Facts:



  • Frequency range 87.5 - 108MHz
  • FM Modulation 75kHz (adjustable) peak deviation Mono 180kF3E Stereo 256kF3E
  • Audio/MPX Input Level -3.5 to +12.5dBm @ 75kHz deviation
  • Audio Input Connectors XLR Female
  • AES/EBU digital input connector (optional) XLR Female, 110Ω balanced
    Separation between channels (optionalstereo generator)60dB
  • Aux channel input level (RDS/SCA)
  • 7.5 kHz deviation: -12.5 to 3.5dBm
  • 2 kHz deviation: -24 to -8 dBm
  • Aux channel input impedance 10kOhm
  • Modulation distortion
    7.5 kHz deviation: <0.05%, 0.02% typical
    2 kHz deviation: <0.2%, 0.05% typical
  • Mono S/N ratio
    30 to 20000Hz: >76dB, 86dB typical
  • CCIR: >75dB, 81dB typical
  • Stereo S/N ratio
    30 to 20000Hz: >72dB, 77dB typical
  • CCIR: >68dB, 72dB typical
  • Audio channels bandwidth 30 to 15000Hz ± 0.1dB
  • Pre-emphasis time constant Selectable, 25/50/75 microseconds
  • Nominal RF output power 250 W
  • Transmitter tuning steps 10/100kHz
  • Output power ALC stability ±3%
  • Harmonics and spurious emissions <80dBc
  • RF output impedance 50Ω
  • RF output connector N type
  • RF sampler connector BNC type
  • Power supply Single phase 110 -230Vac ± 15% 50/60Hz
  • Operating temperature range
    0 to 40ºC recommended
    -10 to 55ºC max
  • Relative humidity up to 95% not condensed
