GP antenna FM broadband 87-108 1000W

Product Discription:

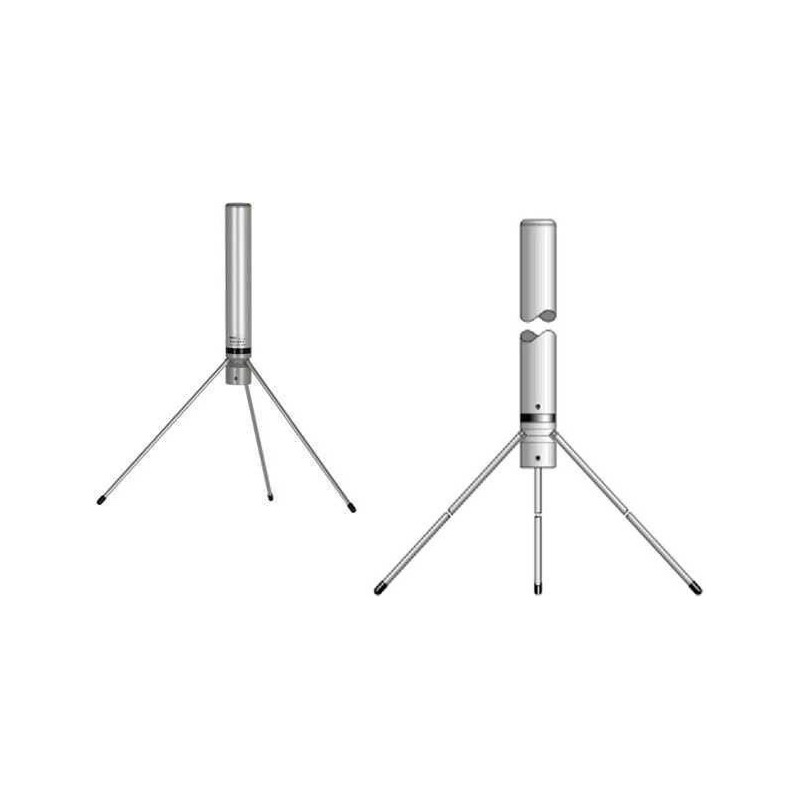

Base station antenna, FM Wide-band GP Antenna

• Unity-gain, Omnidirectional
• Protection from static discharges DC-Ground
• Perfect protection against the worst weather conditions
• Made of anodized aluminium alloy
• Stainless steel hardware

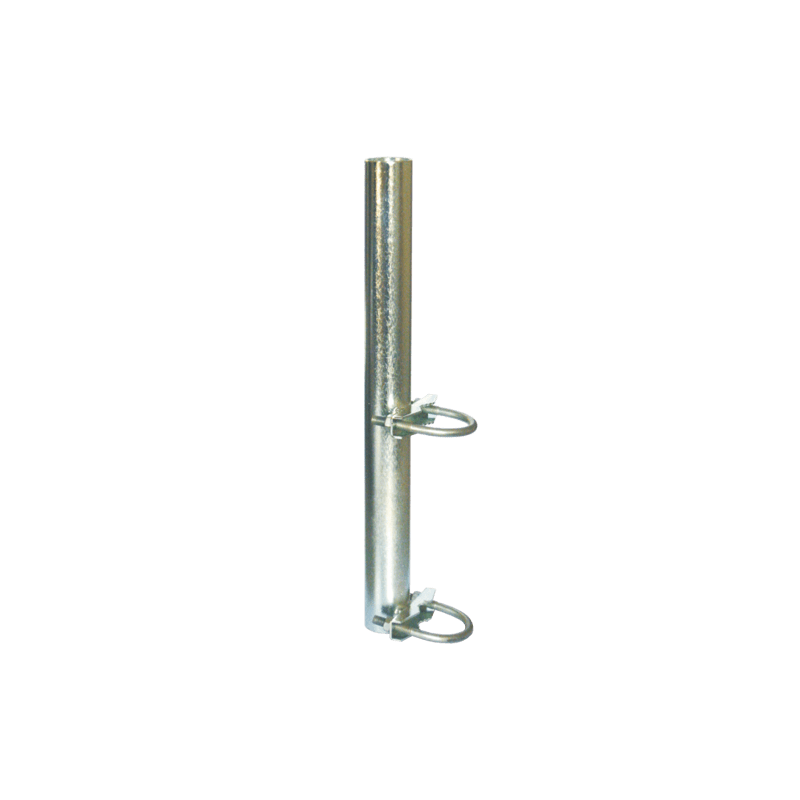

• Side mast mounting allowed by optional bracket FT-2 code 2510004.00


Technical Facts:

• Base station antenna, Wide-band
• Unity-gain, Omnidirectional
• Protection from static discharges DC-Ground
• Perfect protection against the worst weather conditions
• Made of anodized aluminium alloy
• Stainless steel hardware

Electrical Data:

• Type: 1/4? folded ground plane

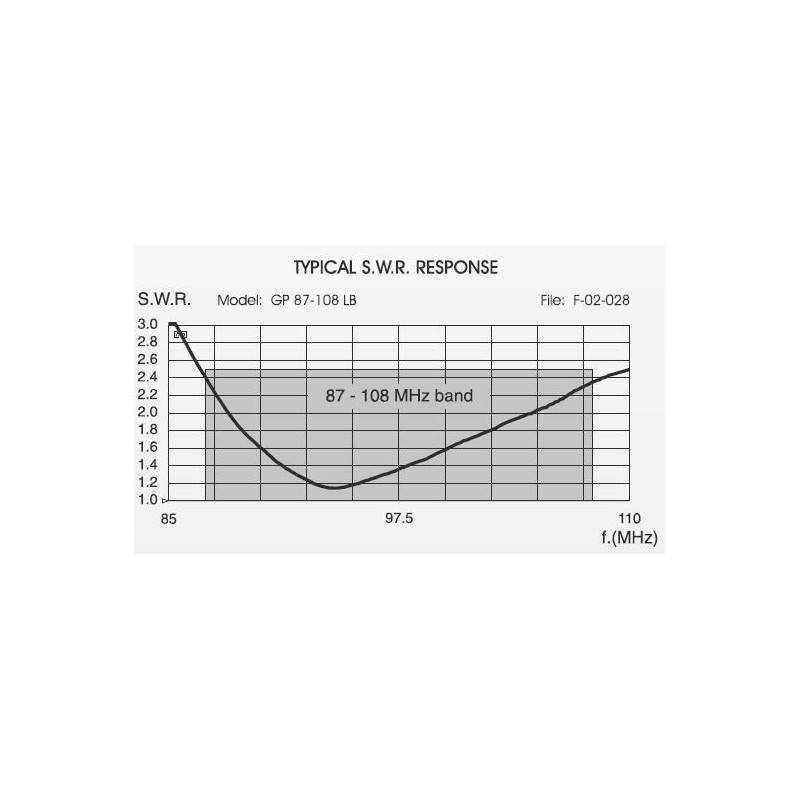

• Frequency range: RADIO band 87-108 MHz (at V.S.W.R. ? 2.5:1)
• Impedance: 50? unbalanced
• Radiation (H-plane): 360? omnidirectional

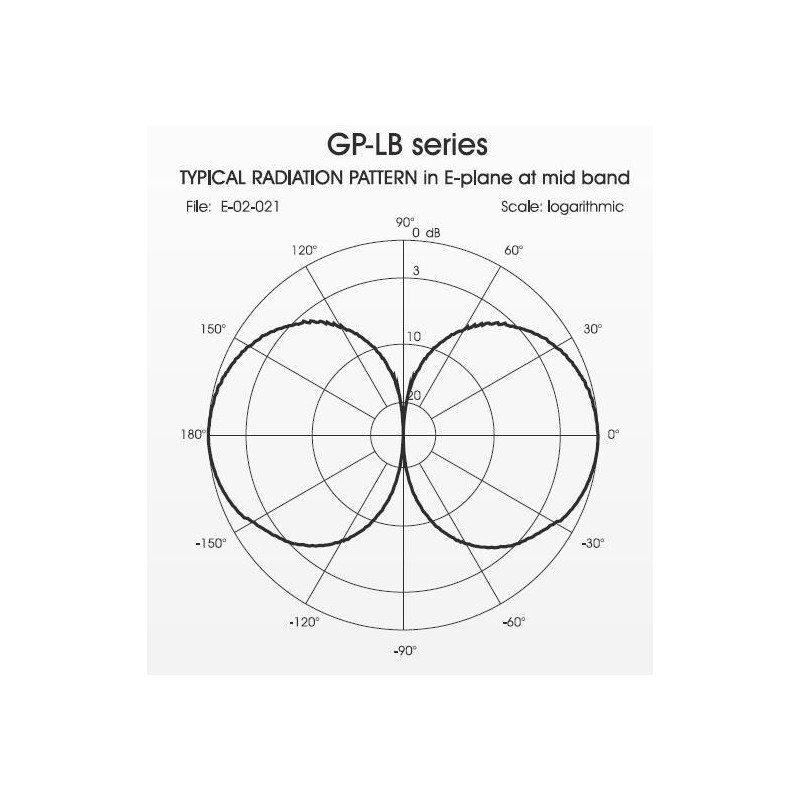

• Radiation (E-plane): beamwidth at -3 dB = 78?
• Radiation angle: 0?
• Polarization: vertical
• Gain: 0 dBd - 2.15 dBi
• Bandwidth at V.S.W.R. 2:1:  LB: 22 MHz
• V.S.W.R. at res. freq.: ? 1.2:1
• Max. power: 1000 Watts
• Feed system / position: direct DC-ground / center

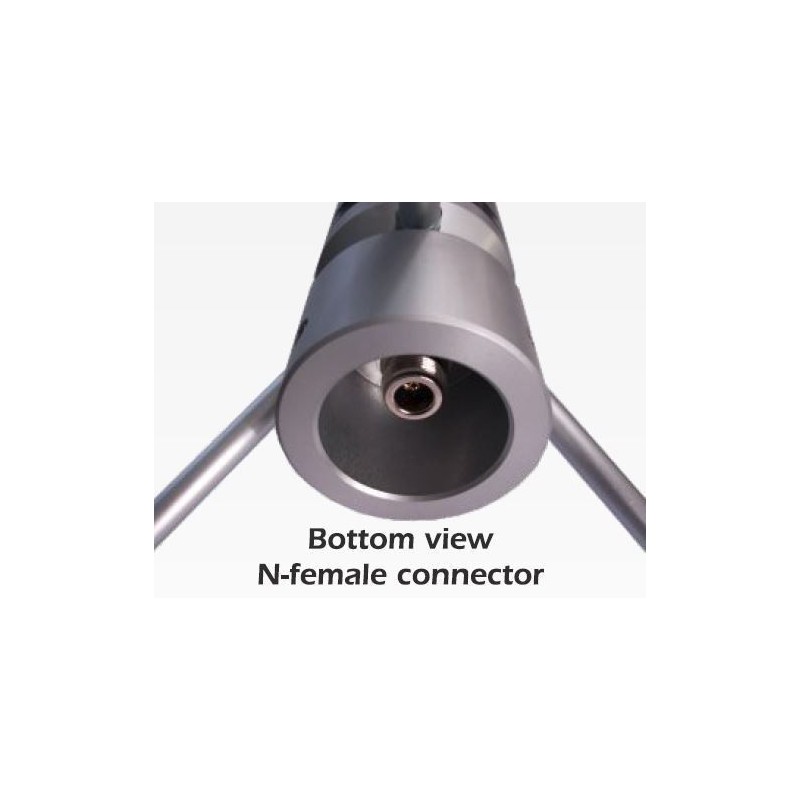

• Connection: N-female

Mechanical Data:

• Materials: Anodized Aluminium, Stainless Steel, Nylon
• Wind load / resistance: 67 N at 150 Km/h
• Wind surface: 0.06 m2
• Height (approx.): 1190 mm
• Weight (approx.): 2Kg
• Mounting mast: O 36-40 mm
