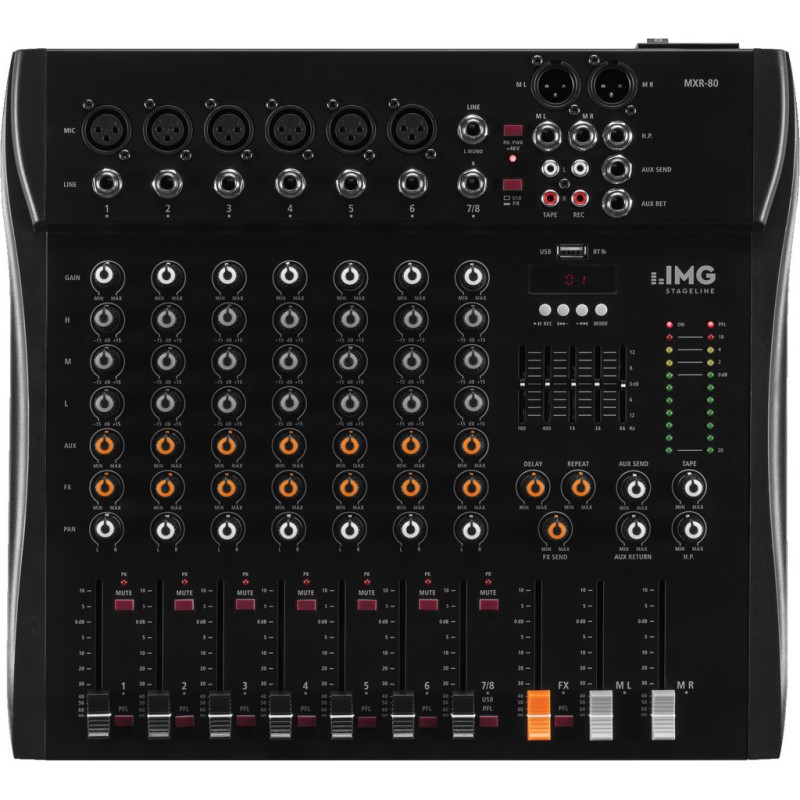

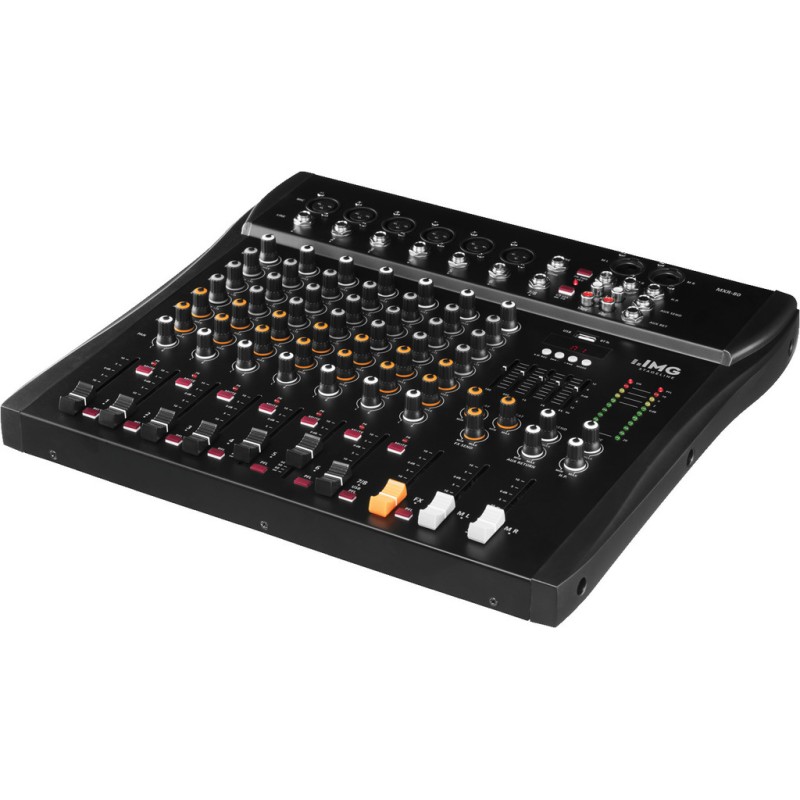

MXR-80 8-channel audio mixer, with integrated MP3 player and Bluetooth receiver
Integrated USB audio interface (will be identified and addressed as an external sound card)
Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
6 mono input channels with gain control, 3-way equalizer and pan pot
1 stereo input channel with 3-way equalizer and balance control
MP3 player
USB port
Bluetooth receiver
DSP delay, adjustable
Adjustable aux return input and FX send output
Tape record/play connections
5-band stereo graphic equalizer
+48 V phantom power, can be activated as required
Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
Stereo LED level display
SPECIFICATIONS
Input channels
8
Number of mix/mono
6
No. of stereo
1
Mic input
2.2 mV, bal. 8 x XLR
Line input
50 mV (stereo), 1 x 6.3 mm jack L/R
30 mV (mono), 8 x 6.3 mm jack
Tape (play)
290 mV, 1 x RCA L/R
Aux input
420 mV, 1 x 6.3 mm jack L/R
Master output
880 mV, bal. 1 x XLR L/R
880 mV, 1 x 6.3 mm jack L/R
Effect send
9 V, 1 x 6.3 mm jack
Tape (rec)
400 mV, 1 x RCA L/R
Headphones
≥ 8 Ω, 1 x 6.3 mm jack
USB
yes
Bluetooth
yes
Frequency range
20-20,000 Hz
THD
< 0.03%
S/N ratio
> 82 dB(A)
Equalizer bass
±15 dB/80 Hz
Equalizer midrange
±15 dB/2.5 kHz
Equalizer treble
±15 dB/12 kHz
equalizer
5-band equalizer
Phantom power
+48 V
Power supply
˜ 230 V/50 Hz/25 VA
Mains voltage
~ 230 V
Mains frequency
50 Hz
Power consumption, operation
25 VA
Admiss. ambient temp.
0-40 °C
Width
382 mm
Height
53 mm
Depth
340 mm
Weight
3.4 kg
Packing dimensions (W x H x L)
0.43 x 0.41 x 0.09 m
Gross weight
3.89 kg
Net weight
3.42 kg
