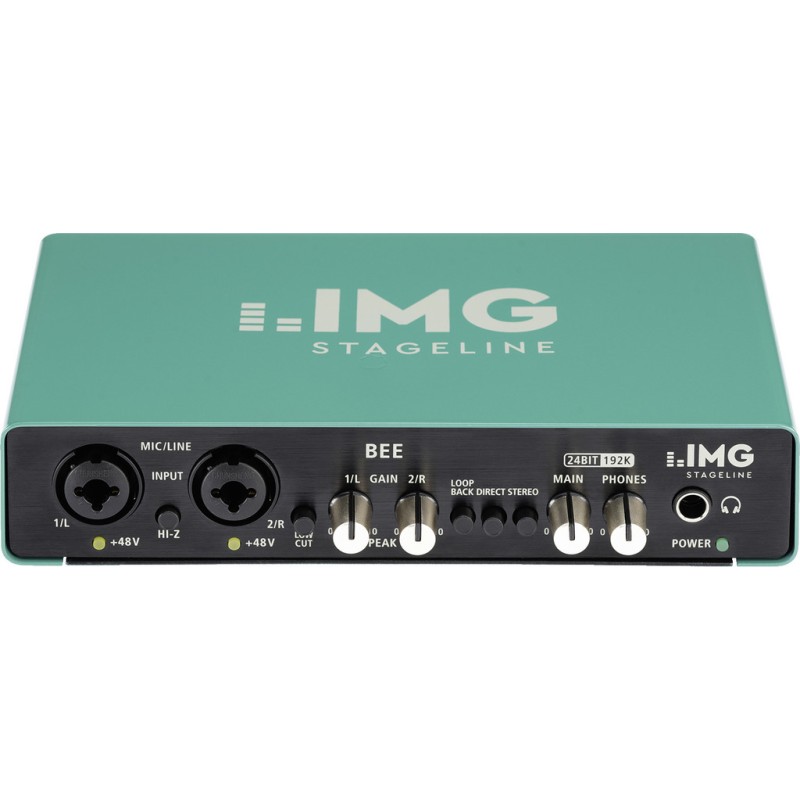

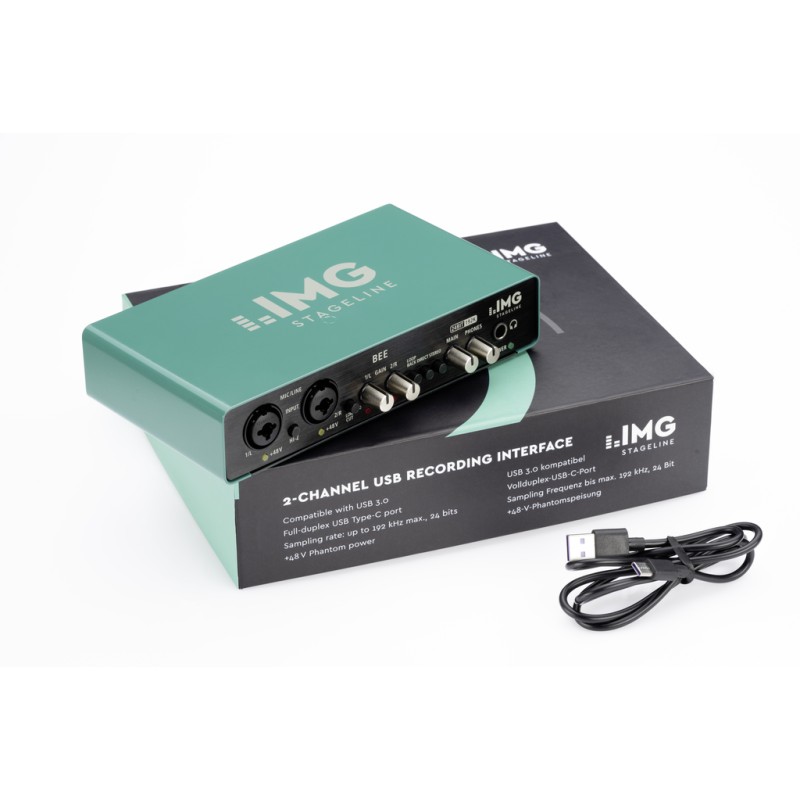

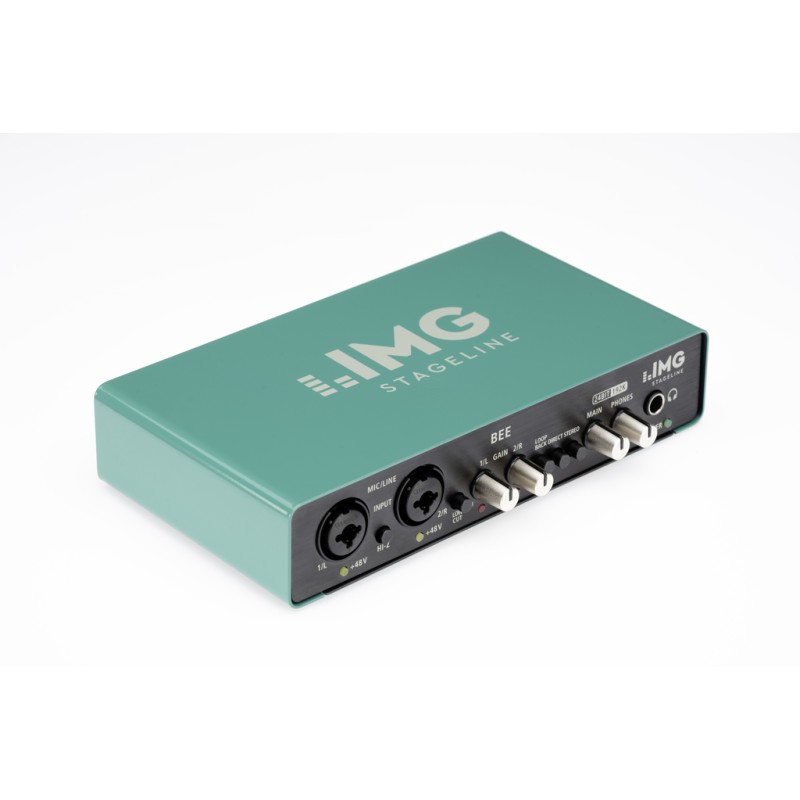

2-channel USB recording interface BEE

2-channel USB recording interface BEE

IMG-Stage Line

New

2-channel USB recording interface model BEE. With integrated USB audio interface (identified and addressed as an external sound card).

By buying this product you can collect up to 8 loyalty points. Your cart will total 8 loyalty points that can be converted into a voucher of € 1,60.


Find similar products

led

monacor

img stage line

stage

€ 174,99

Volume discounts

Quantity Discount You Save
2 2% Up to € 7,00
4 4% Up to € 28,00
6 6% Up to € 63,00
8 8% Up to € 111,99
10 10% Up to € 174,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information 2-channel USB recording interface BEE

2-channel USB recording interface model BEE

Integrated USB audio interface (identified and addressed as an external sound card)
Full-duplex USB Type-C port, compatible with USB 3.0 (enabling simultaneous recording and playback) for digital audio data playback from a PC and for recording mixes on a PC
Sampling frequency: up to 192 kHz max., 24 bits
2 mono input channels via combi jacks (XLR/6.3mm jack), balanced, switchable line/instrument
Main output, switchable mono/stereo
Low-cut function
Switchable direct monitoring
1 x 6.3mm jack output L/R
Adjustable 6.3mm headphone output
+48V phantom power, individually switchable per channel
LED peak indication for each channel
Robust compact-sized metal housing, front panel made of brushed aluminum, black anodized
Separate USB Type-C input, DC 5V, for external power supply (not included in the delivery)

SPECIFICATIONS
Number of channels: 2
Number of inputs: 4
Microphone input: 2.5 mV, 2 x combi XLR/6.3mm (line/microphone), balanced
1.4 kΩ

Line input: 19 mV, 2 x combi XLR/6.3mm (line/microphone), balanced
10.5 kΩ (line)/500 kΩ (inst.)

Master output: 6.5 V max., 2 x 6.3mm jackplug L/R
Headphone: 1 x 6.3mm jack
USB: Yes, USB Type-C (compatible with USB 3.0), full-duplex
Frequency range: 20-20,000 Hz
THD: 0.001%
S/N ratio: ≥ 87 dBu
Crosstalk: ≥ 55 decibels
Phantom power: +48 V
Power supply: via USB interface
DC 5 V/1,250 mA

Operating voltage (optional alternative): DC 5 V
Power supply (optional alternative): 1,250mA
Admissible ambient temperature: 0-40°C
Width: 190mm
Height: 40mm
Depth: 117mm
Weight: 717g
Packaging dimensions (W x H x L): 0.18 x 0.062 x 0.236 meters
Gross weight: 1,017 kg
Net weight: 0.725 kg
