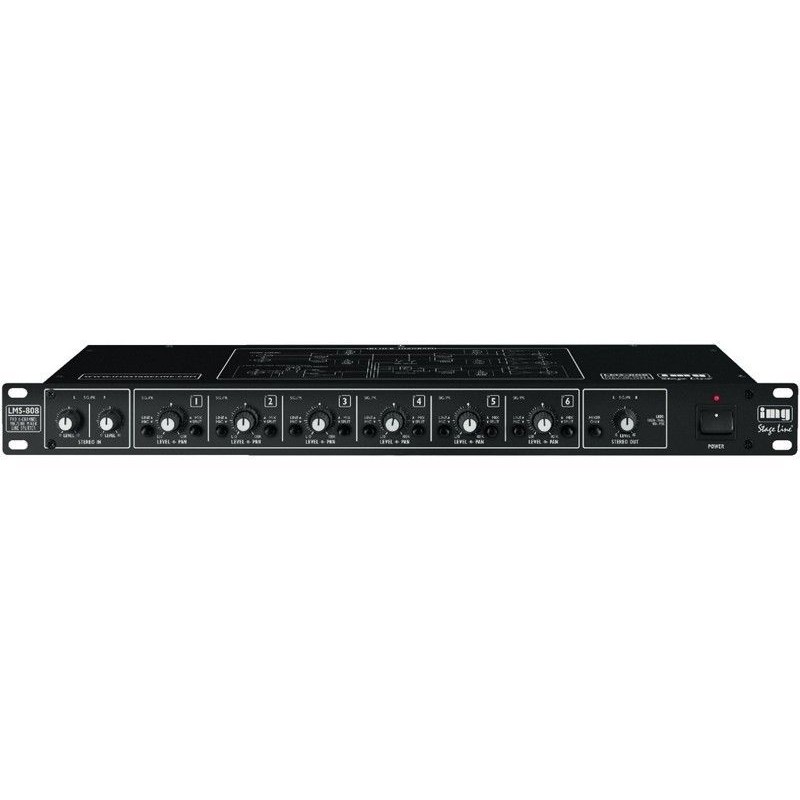

IMG-Stage Line LMS-808 Microphone line mixer/line splitter

IMG-Stage Line LMS-808 Microphone Line Mixer/Line Splitter View larger

: IMG-Stage Line

: LMS-808

: New

: Microphone Mixers | Amplifiers

: IMG-Stage Line LMS-808 Microphone line mixer/line splitter

IMG-Stage Line Microphone line mixer/line splitter

By buying this product you can collect up to 15 loyalty points. Your cart will total 15 loyalty points that can be converted into a voucher of € 3,00.


€ 319,99

Volume discounts

Quantity Discount You Save
2 2% Up to € 12,80
4 4% Up to € 51,20
6 6% Up to € 115,20
8 8% Up to € 204,79
10 10% Up to € 319,99

Discount on your Order Discount on your Order
Free Shipping Free Shipping up to 1 KG in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money-back Guarantee Money-back Guarantee
Trustpilot Trustpilot

Product information IMG-Stage Line LMS-808 Microphone line mixer/line splitter

IMG-Stage Line Microphone line mixer/line splitter





Microphone line mixer/line splitter
  • Multifunctional unit with three selectable operating modes:
  • Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo output
  • Line splitter operation for splitting 2 mono line inputs to 6 mono outputs
  • Level matching amplifier operation for amplifying up to 6 input signals
  • 6 mono input channels, each with switchable 12V phantom power, pan control, signal/clip LED and individual selection of the operating mode
  • 2 mono line input channels, each with level control and signal/clip LED












Technical Facts:
  • Line input, mono250mV/30kΩ
  • Microphone/line input1mV/6.6kΩ (mic), 100mV/40kΩ (line)
  • Line output, stereo1V/200Ω
  • Line output, mono1V/200Ω
  • Frequency range10-30,000Hz
  • THD0.02% S/N ratio81dB, weighted
  • Crosstalk-63dB
  • Power supply230V/50Hz/10VA
  • Admiss. ambient temp.0-40 °C
  • Dimensions (WxHxD)482x48x200mm, 1RS
  • Weight2.9kg Line input, mono2 x XLR, bal.
  • Microphone/line input6 x XLR, bal.
  • Line output, stereo1 x XLR L/R, bal.
  • Line output, mono6 x XLR, bal.
