Monacor 4-Zone PA Matrix Mixing Amplifier

Monacor 4-Zone PA Matrix Mixing Amplifier

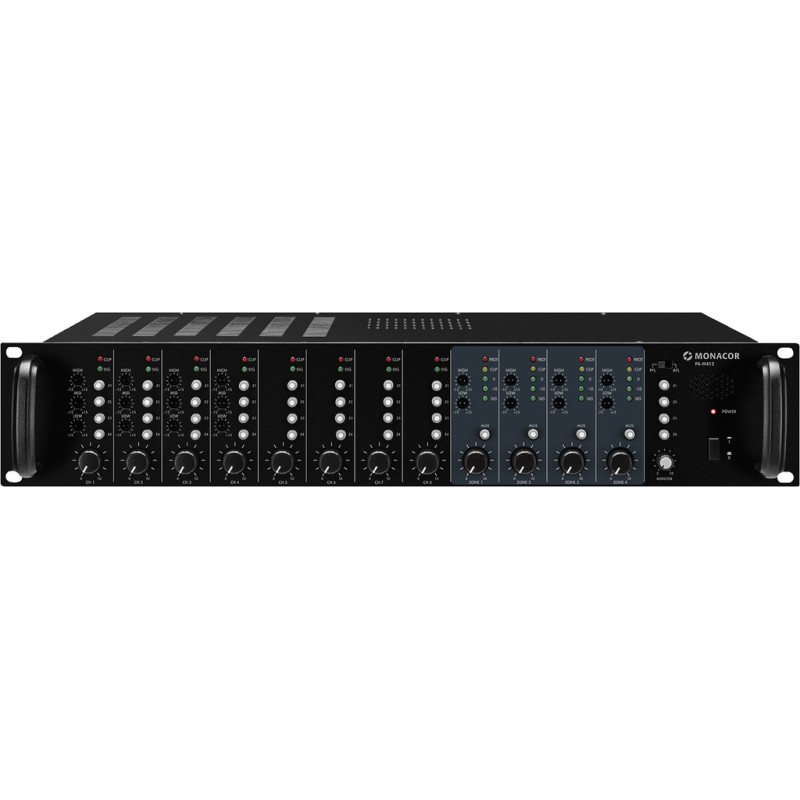

The Monacor 4-Zone PA Matrix Mixing Amplifier offers a versatile and efficient solution for multi-zone audio distribution, ideal for commercial and professional applications.

Key Features:

• Power Output: 120 W per zone
• Zones: 4 independent zones, each with 2-way tone control
• Efficiency: Class D design for reduced energy costs

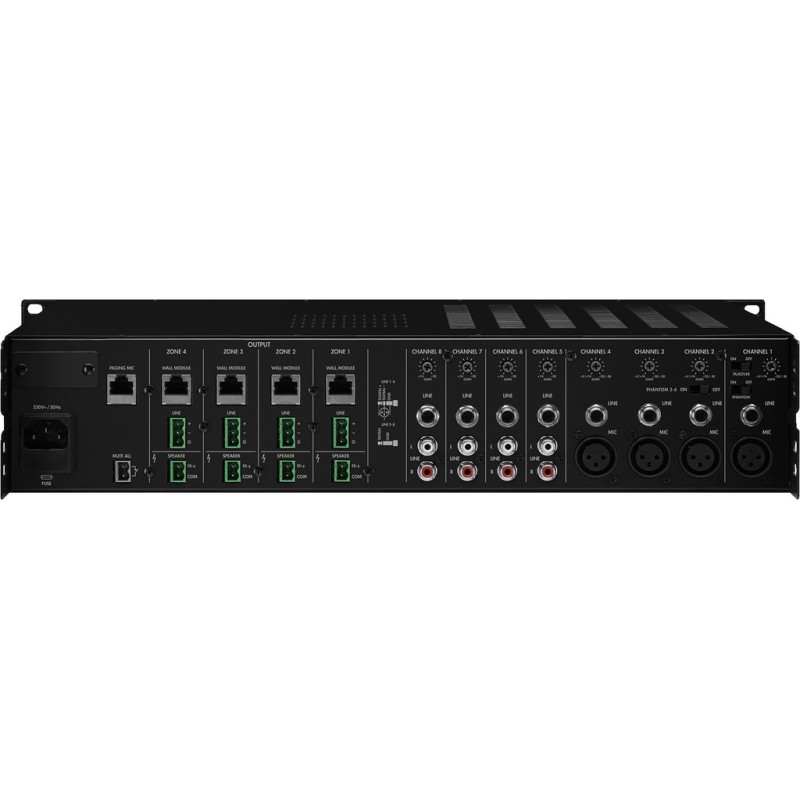

• Inputs:
  • 4 adjustable mic/line inputs with 3-way equalizer
  • 24V phantom power, switchable per input
  • 4 adjustable line inputs
• Mute Options:
  • Individual zone muting
  • External mute switch for all zones simultaneously
• Talkover: Channel 1 priority with automatic level reduction of other inputs
• Monitoring: Adjustable monitor function for precise sound checks

Expandability:

• Paging and Control:
  • Connection for zone paging microphone (PA-M4RC)
  • 4 connections for wall control modules (PA-M1WP)

Installation:

• Form Factor: 482 mm (19") rack-mountable design

Application:

This amplifier is perfect for environments requiring flexible audio zoning, such as retail spaces, conference centers, and public buildings.
