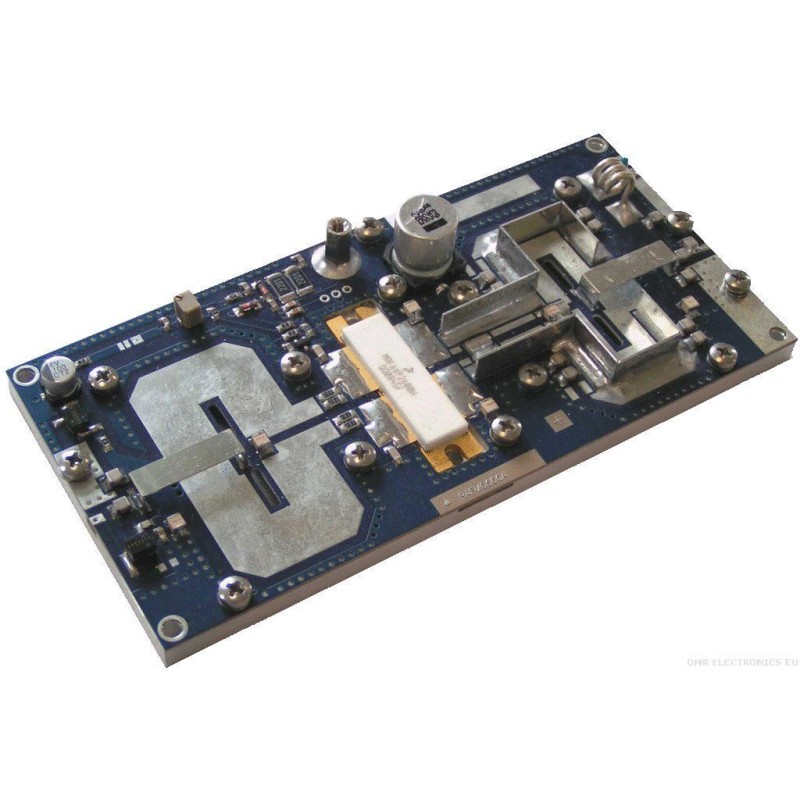

Power Versterker Pallet 600W FM PAFM0600XR

Product discription:

Power Amplifier Section 600W FM Designed primarily for FM application, this amplifier is suitable for any CW or pulsed application.

• 87.5 - 108 MHz
• Pout: 600 W
• Gain: 23 dB
• Extreme Ruggedness (VSWR 65:1)
• Class C
• Device: MRF6V5600NR1
• Supply : 30-48 VDC - 43VDC nominal
• Dimensions(LxWxH): 140x68x21 mm 5,55”x2,67”x0,82”

Technical facts:

• Voltage supply 52 V V
• Supply current 20 A I
• Operating Temperature range 0 +95 °C Note1
• Storage Temperature range -30 +90 °C
• Load Mismatch (full power, all phase angle) 2:1 Note2
• Frequency range 87.5 108 MHz
• Power gain (saturated) 21 24 dB Note3
• Power Output 550 600 650 W
• Power Input 2 5 8 W Note4
• Efficiency 74 80 % Note5
• Supply voltage 30 48 V
• Power gain variation +/-0.5 +/-1 dB
• F2 Second Harmonic -28 -24 dB
• F3 Third Harmonic -28 -24 dB
