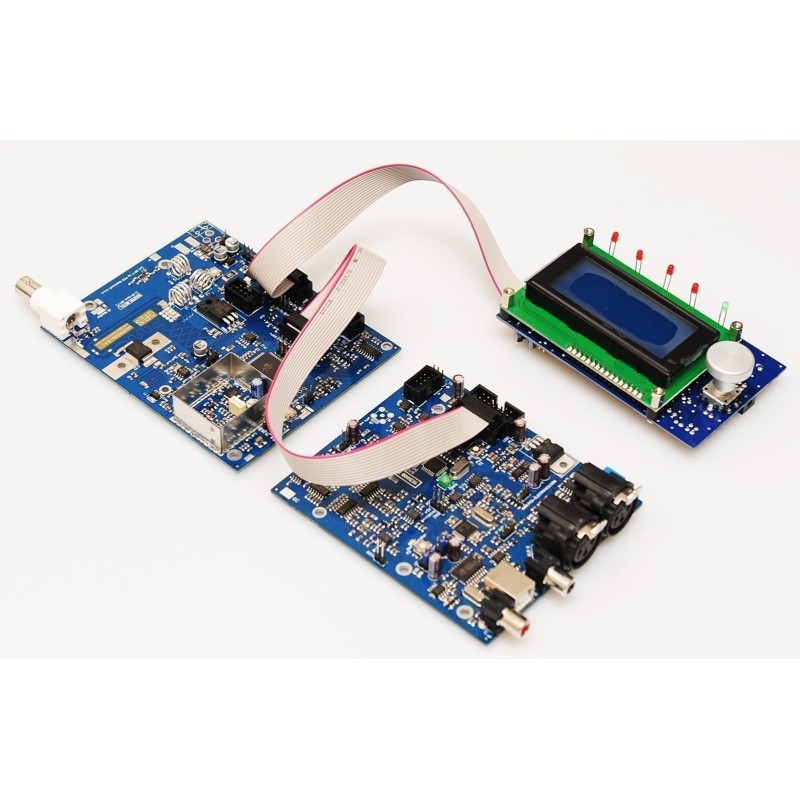

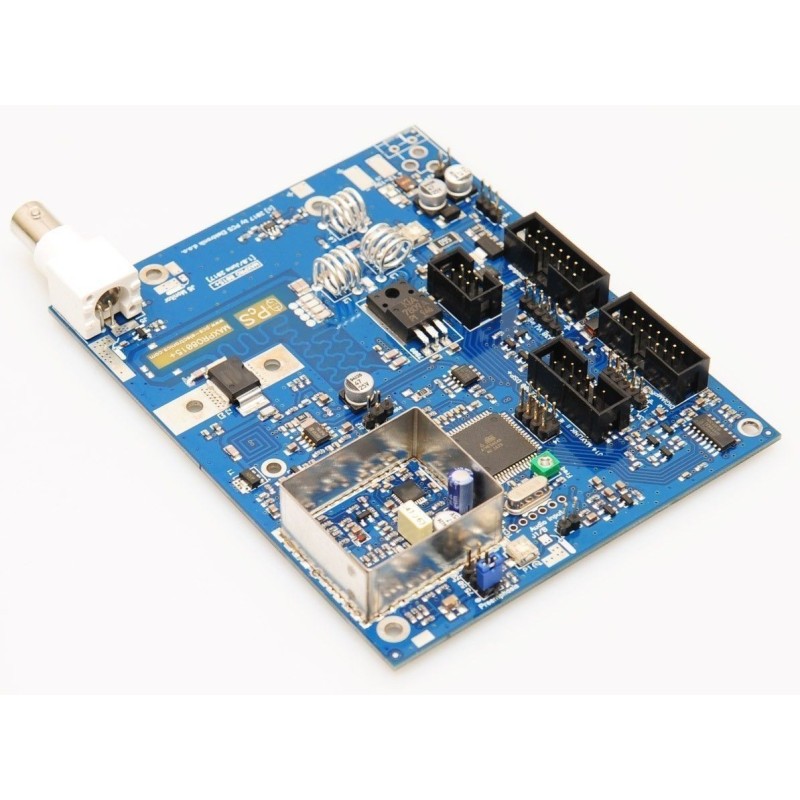

MAXPRO-8015+ 15W FM zender - stuurzender inclusief LCD

Qsonic PLL/VCO, excellent bass response, fast lock!

The new MAX PRO 8015+ FM exciters are fine-tuned, optimized and improved version of MAXPRO7015. They bring even better S/N ratio and MAXLINK II interface for easy no-soldering wiring to the new SE8000 DSP+ stereo encoder.

  • RF Output Power: 0 to 15 Watts, LCD power adjustment range can also be limited to 0-1W, 0-2W, 0-3W, 0-4W ... 0-15W, 0-full, this is done with a jumper (exact options vary depending on model)
  • Output connector: 15 BNC
  • Output Impedance: 50 Ohms
  • Frequency range: 87.5-108MHz
  • PLL Steps: 50KHz-500KHz, adjustable
  • Frequency stability: +/- 20Hz
  • Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: (>80dB)
  • Power Supply 15W: 12-15V/3A or car battery
  • Power connector: New design with plugin with 2 screw terminals or standard barrel type
  • Quartz Locked PLL Frequency Control
  • Ultra Stable, Ultra Clean Output
  • No Expensive Test Equipment Required
  • Audio performance: Less than 0.1% distortion, 20Hz-75KHz
  • RF output ruggedness: SWR protection
  • Polarity protection, temp protection
  • Pre-emphasis, 50uS, 75uS or none
  • Audio Input Impedance: 10Kohm, unbalanced
  • Audio Input Level: 0 dB
  • S/N ratio: >90 dB
  • PC Board Size 15W: 100x125mm
  • Audio connectors: 2 pins and solder pads, MAXLINK II
  • RF monitor: solder pads

Bij het kopen van dit product krijgt u in totaal 28 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 28 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 5,60.


€ 284,99

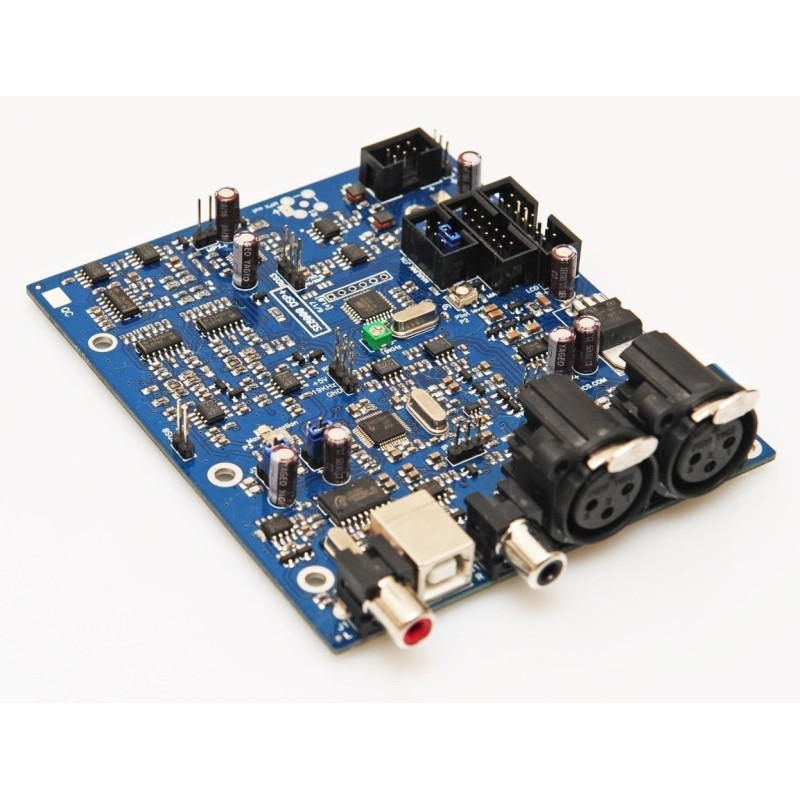

  • Digital Stereo encoder met Digital inputs

  • Stereo L R

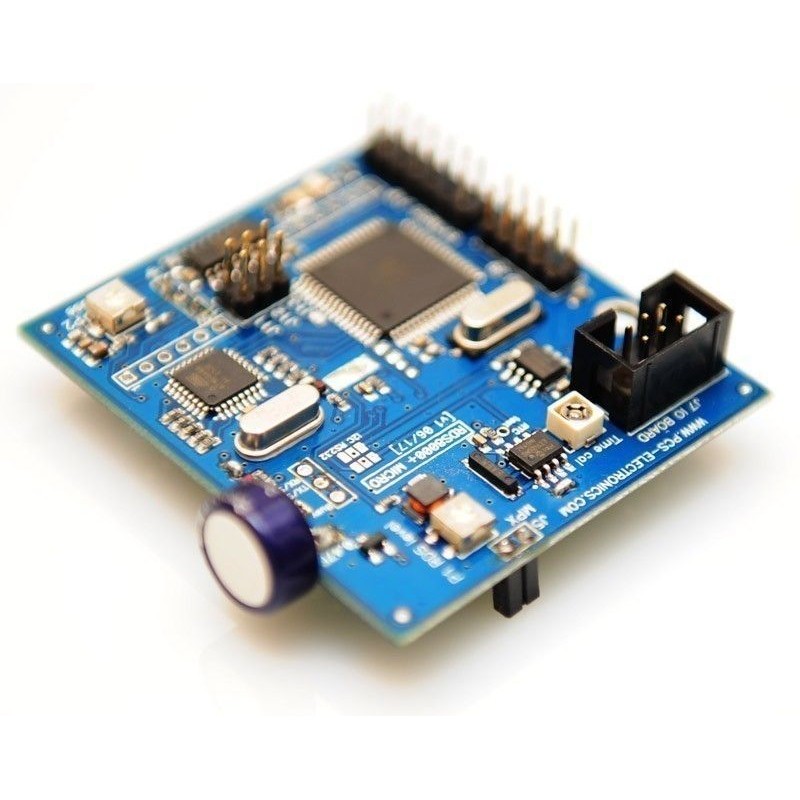

  • RDS encoder daughter board

  • Zonder RDS

Aantal Korting U bespaart
2 2% Tot € 11,40
4 4% Tot € 45,60
6 6% Tot € 102,60
8 8% Tot € 182,39
10 10% Tot € 284,99

Productinformatie

Product discription:

MAXPRO-8015+ 15W FM zender - stuurzender inclusief LCD

Qsonic PLL/VCO, excellent bass response, fast lock!

The new MAX PRO 8015+ FM exciters are fine-tuned, optimized and improved version of MAXPRO7015. They bring even better S/N ratio and MAXLINK II interface for easy no-soldering wiring to the new SE8000 DSP+ stereo encoder.

Supports previous MAXLINKI and new MAXLINK II for easy interfacing with the new SE8000 DSP+ without soldering

  • MPX cable no longer needed for connection to new stereo encoders (Such as SE8000 DSP+).
  • VU meter signals wired through MAXLINK II and LCD display flat cable which simplifies wiring considerably
  • Further Improved S/N ratio across the band, designed for maximum spurious signal rejection (>80dBc). Some high-end customers appreciate this feature. Depending on operating frequency dBc can be >95dB down relative to the carrier.
  • Self-resetting electronic PTC fuse (no more pesky fuse replacements).

What parameters can I change via remote control?
Its best that you look at the screen capture below. The program may change over time as we make enhancements, we will be adding more features soon!



Technical facts:

  • RF Output Power: 0 to 15 Watts, LCD power adjustment range can also be limited to 0-1W, 0-2W, 0-3W, 0-4W ... 0-15W, 0-full, this is done with a jumper (exact options vary depending on model)
  • Output connector: 15 BNC
  • Output Impedance: 50 Ohms
  • Frequency range: 87.5-108MHz
  • PLL Steps: 50KHz-500KHz, adjustable
  • Frequency stability: +/- 20Hz
  • Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: (>80dB)
  • Power Supply 15W: 12-15V/3A or car battery
  • Power connector: New design with plugin with 2 screw terminals or standard barrel type
  • Quartz Locked PLL Frequency Control
  • Ultra Stable, Ultra Clean Output
  • No Expensive Test Equipment Required
  • Audio performance: Less than 0.1% distortion, 20Hz-75KHz
  • RF output ruggedness: SWR protection
  • Polarity protection, temp protection
  • Pre-emphasis, 50uS, 75uS or none
  • Audio Input Impedance: 10Kohm, unbalanced
  • Audio Input Level: 0 dB
  • S/N ratio: >90 dB
  • PC Board Size 15W: 100x125mm
  • Audio connectors: 2 pins and solder pads, MAXLINK II
  • RF monitor: solder pads
