MPX 206 SW 6 kanaals stereo mixer
MPX 206 SW 6 kanaals stereo mixer
IMG-Stage LineMPX 206 SW
MPX 206 SW 6 kanaals stereo mixer
- 4 stereo input channels
- 1 DJ microphone channel
- 1 stereo effect way
- 2 master outputs
- 1 record output
Bij het kopen van dit product krijgt u in totaal 32 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 32 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 6,40.

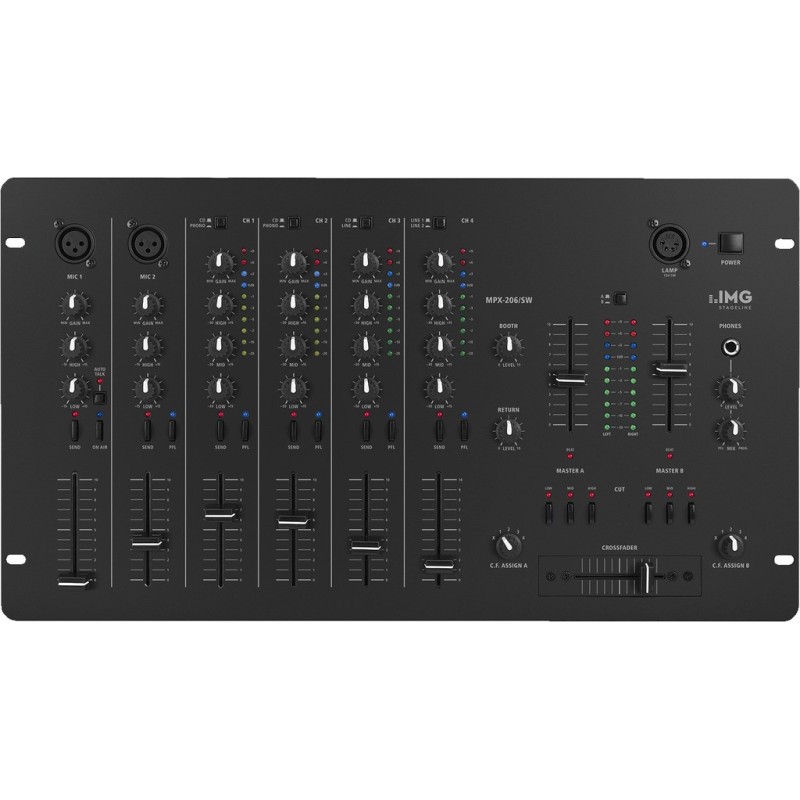

Productinformatie MPX 206 SW 6 kanaals stereo mixer
MPX 206 SW 6 kanaals stereo mixer
6-channel stereo mixer
- 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
- 1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
- 1 stereo effect way (send/return)
- 2 master outputs, each with beat LED and 1 booth output
- 1 record output
- LED level display, switchable between both master outputs
- Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
- Adjustable headphone output
- Fader start for the stereo inputs (channels 1-4)
- Connection for gooseneck light GNL-404
Technical facts:
| No. of channels | 6 |
| No. of inputs | 12 |
| Mic input | 1.5 mV, 2 x 6.3 mm jack |
| Line input | 150 mV, 3 x RCA L/R |
| CD input | 150 mV, 3 x RCA L/R |
| Phono input | 3 mV, 2 x RCA L/R |
| Tape (play) | - |
| Aux input | - |
| Insert input | - |
| Effect return | 135 mV, 1 x RCA L/R |
| Master output | 1 V/600 Ω, 1 x 3-pole XLR L/R |
| Record output | 300 mV/600 Ω, 1 x RCA L/R |
| Monitor output | 1 V/600 Ω, 1 x RCA L/R |
| Booth output | - |
| Aux output | - |
| Insert output | - |
| Effect send | 300 mV/600 Ω, 1 x RCA L/R |
| Control room | - |
| Tape (rec) | - |
| Headphones | ? 8 Ω, 6.3 mm jack |
| Gooseneck lamp | 12 V/5 W, 4-pole XLR |
| WiFi | - |
| USB | - |
| Bluetooth | - |
| Frequency range | 20-20,000 Hz |
| THD | 0.05% |
| S/N ratio | > 50 dB |
| Crosstalk | - |
| Equalizer bass | +15 dB, -30 dB/50 Hz |
| Equalizer midrange | +15 dB, -30 dB/1 kHz |
| Equalizer treble | +15 dB, -30 dB/10 kHz |
| equalizer | - |
| Talkover | -12 dB, switchable |
| Phantom power | - |
| Crossfader | yes |
| Media player | - |
| Amplifier | - |
| Power supply | ∿ 230 V/50 Hz/14 VA |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 14 VA |
| Operating voltage (possible alternative) | - |
| Power supply (possible alternative) | - |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 266 mm |
| Depth | 110 mm |
| Rack spaces, RS | 6 |
| Weight | 6.48 kg |
