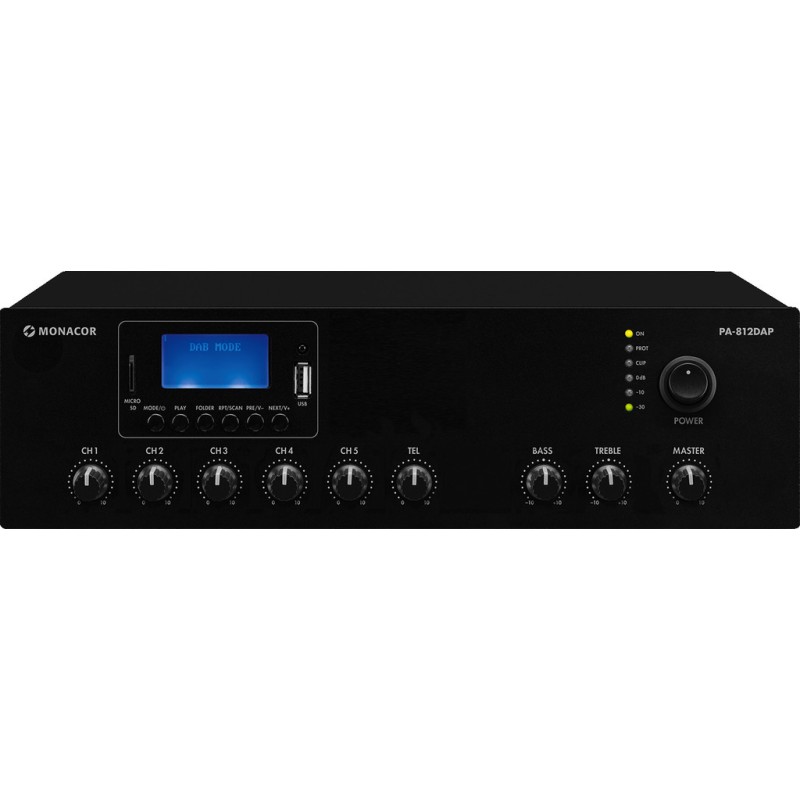

Monacor PA-812 DAP 120W versterker

Monacor PA-812DAP 120W versterker Bekijk groter

Monacor PA-812 DAP 120W versterker

Monacor

PA-812DAP

Monacor PA-812DAP 120W versterker mp3-speler, FM/DAB+tuner, Bluetooth

  • 1 x 120 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept

Expected to be available in week 17/23

Bij het kopen van dit product krijgt u in totaal 23 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 23 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 4,60.


Vergelijkbare producten vinden

img stage line

hifi

ela

versterker

podium

€ 464,99

Volumekorting

Aantal Korting U bespaart
2 2% Tot € 18,60
4 4% Tot € 74,40
6 6% Tot € 167,40
8 8% Tot € 297,59
10 10% Tot € 464,99

Korting op je Bestelling Korting op je Bestelling
Gratis verzenden Gratis verzenden tot 1 KG
Volume korting Volume korting
Bonus systeem Bonus systeem
Veilig betalen Veilig betalen
Niet goed geld terug Niet goed geld terug
Trustpilot Trustpilot

Productinformatie Monacor PA-812 DAP 120W versterker

Product discription:

Monacor PA-812DAP 120W versterker mp3-speler, FM/DAB+tuner, Bluetooth

  • 1 x 120 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free 'digital radio' (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 TEL input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw terminal contacts
  • Mute function via screw terminal contact
  • 1 amp input
  • 1 preamp output
  • Input level control and output level control
  • 2-way tone control for the output
  • Temperature-controlled fan
  • LEDs for indicating operation, clipping, protect and signal level



Technical facts:

PA-812DAP
Power rating 120 W
Channels 1
Zones 1
Inputs 4.5 mV/600 Ω (channel 1),

4.5 mV/120 mV (channels 2-3),

60 mV (channels 4-5)

90 mV (tel.)
Frequency range 60-15,000 Hz
Equalizer bass yes
Equalizer treble yes
S/N ratio 72 dB (mic, channels 1-3)

85 dB (line, channels 2-5)
THD < 0.5%
Phantom power 48 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 250 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) 8.4 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 95 mm
Depth 245 mm
Weight 5 kg
Connections 1 x XLR (channel 1),

2 x 6.3 mm jack (channels 2-3)

2 x RCA L/R (channels 4-5),

1 x RCA (amp in),

1 x RCA (preamp out),

1 x F jack (FM/DAB+),

screw contacts (tel. input),

screw contacts (MOH),

screw contacts ( DC 24 V),


Gross weight 5.6 kg
Net weight 4.93 kg
