OMB PD-2000 TV ANTENNA PANEL FOR IV AND V BANDS

Product discription:

OMB PD 2000 is a broadband UHF panel Antenna

The PD 2000 is a broadband UHF panel that works in Band IV and V (no adjustment is necessary). It can be used as individual unit (up to 2kW) or some units can be grouped in order to obtain a more powerful antenna system. In this case, a power divider is required, and all the interconnection coaxial cables must have the same length in order to obtain in-phase contributions.

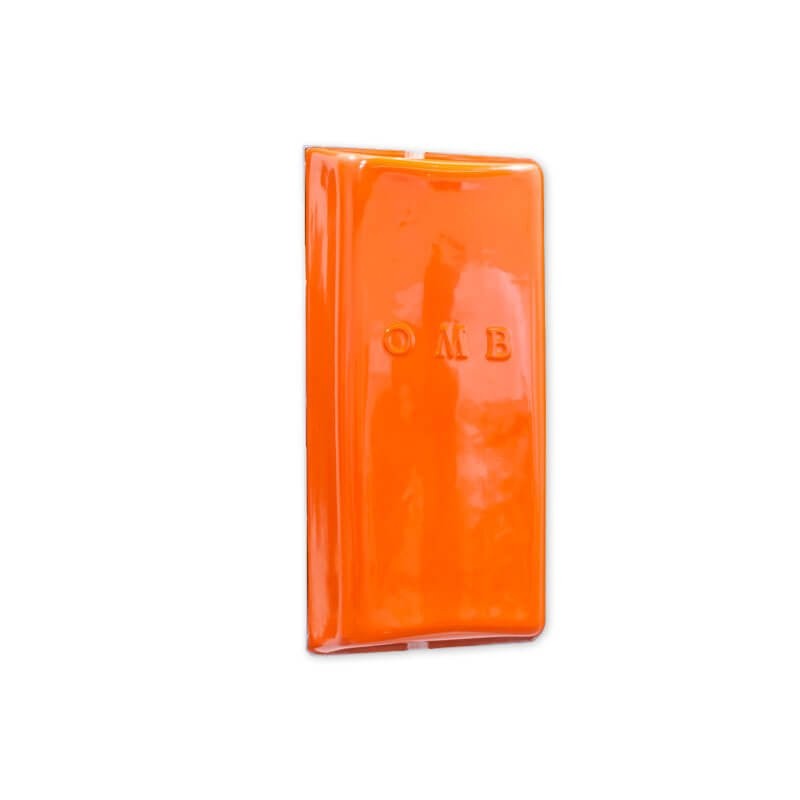

The PD 2000 is designed to transmit many carriers and High-Definition TV services. It is made up of 2 double dipoles and a reflector made of stainless steel, and all the components are protected with a radome made of polyester and fiberglass. It has horizontal polarization and DC-ground lightning protection. It is a low-maintenance panel really easy to install

Technical facts:

•  FREQUENCY RANGE470 ~ 890MHz
• IMPEDANCE50Ω
• MAXIMUM POWER2000W
• GAIN13dBi

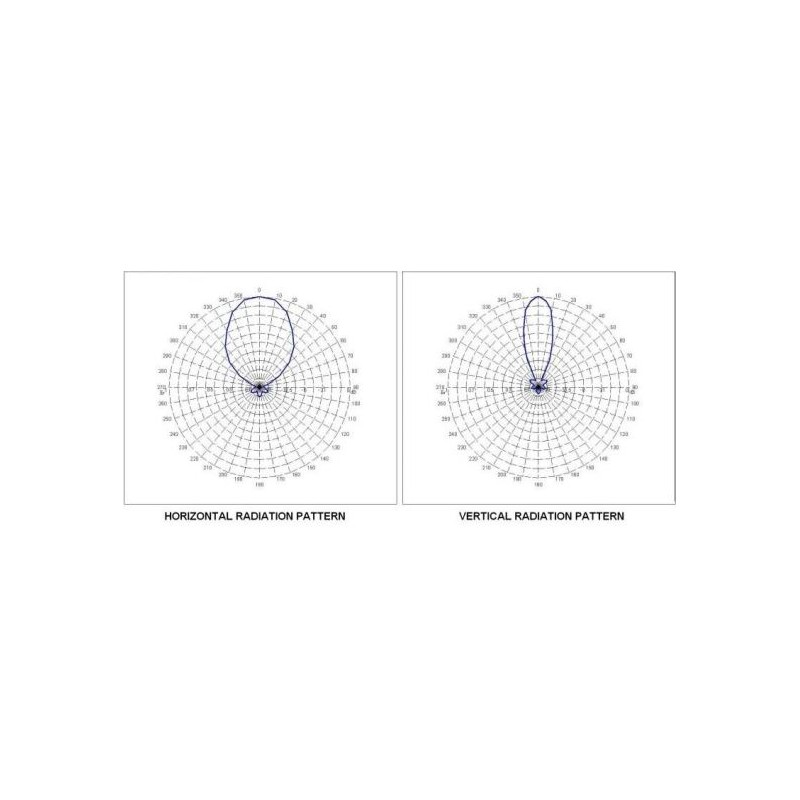

• POLARIZATIONHorizontal
• INPUR CONNECTORDIN 7/16'' Female
• WEIGHT34.91lbs (15.87Kg)
• MOUNTING1 ~ 3'' tubes
• MATERIALStainless steel reflector and radome made of polyester and fiberglass.
• TYPICAL VSWR1.10 : 1 (< -26dB return loss)
• DIMENSIONS96,52 x 48,26 x 20,32 cm

Configurations:

Options:

• PD 2000-2 :  2x PD 2000, POWER DIVIDER DT-2 WITH N TYPE CONNECTORS, 2 JUMPERS 1/2" HELIAX CABLE WITH N TYPE, DIN 7/16" CONNECTORS
• PD 2000-3 :  3x PD 2000, POWER DIVIDER DT-3 WITH N TYPE CONNECTORS, 3 JUMPERS 1/2" HELIAX CABLE WITH N TYPE, DIN 7/16" CONNECTORS
• PD 2000-4 :  4x PD 2000, POWER DIVIDER DT-4 WITH 7/16" INPUT 4 N TYPE OUTPUTS, 4 JUMPERS 1/2" HELIAX CABLE WITH N TYPE AND DIN 7/16" CONNECTORS
